Simple Jig for Slice Logs into Lumber on a Bandsaw

Simple Jig for Slice Logs into Lumber on a Bandsaw with free plans

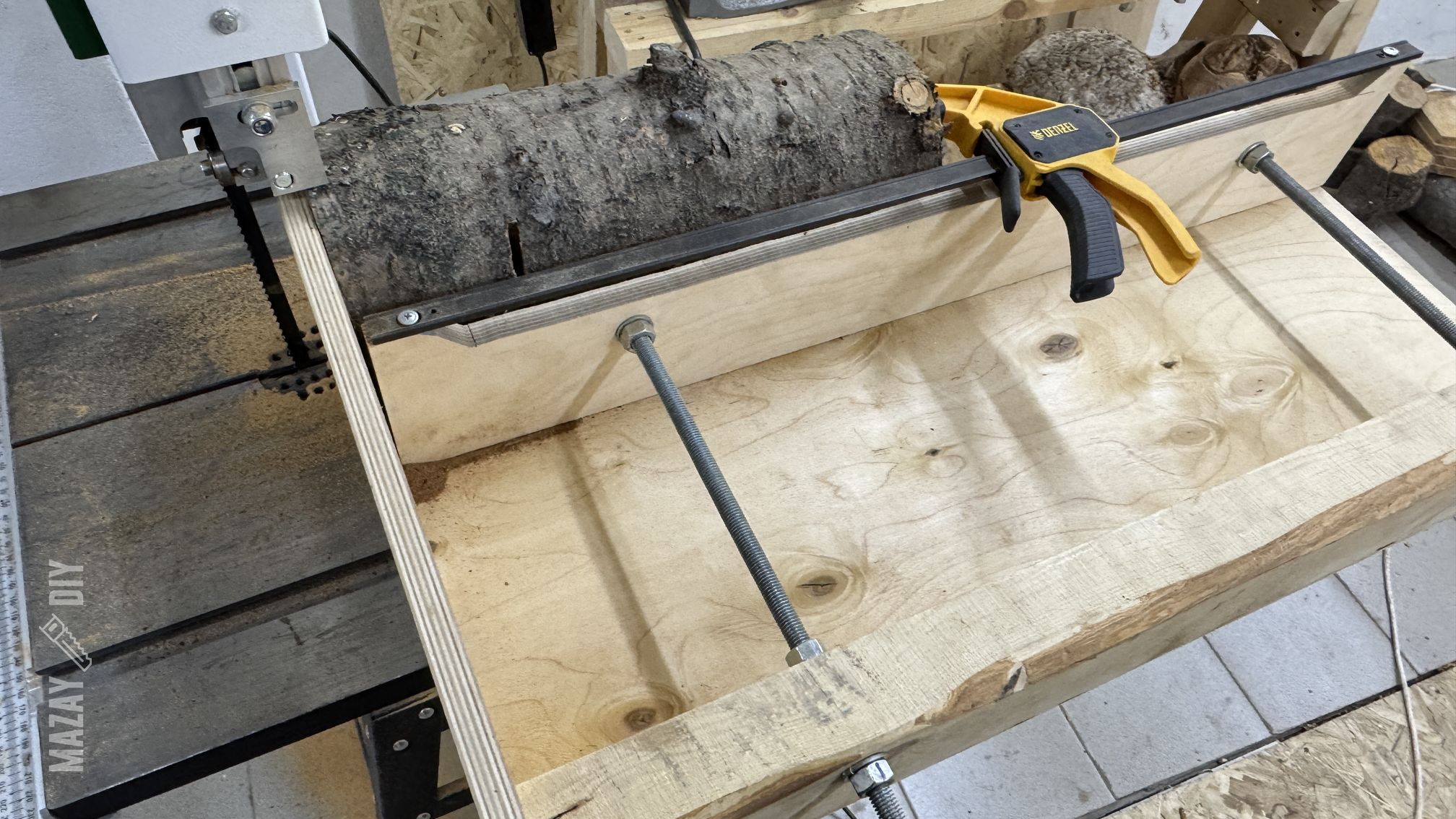

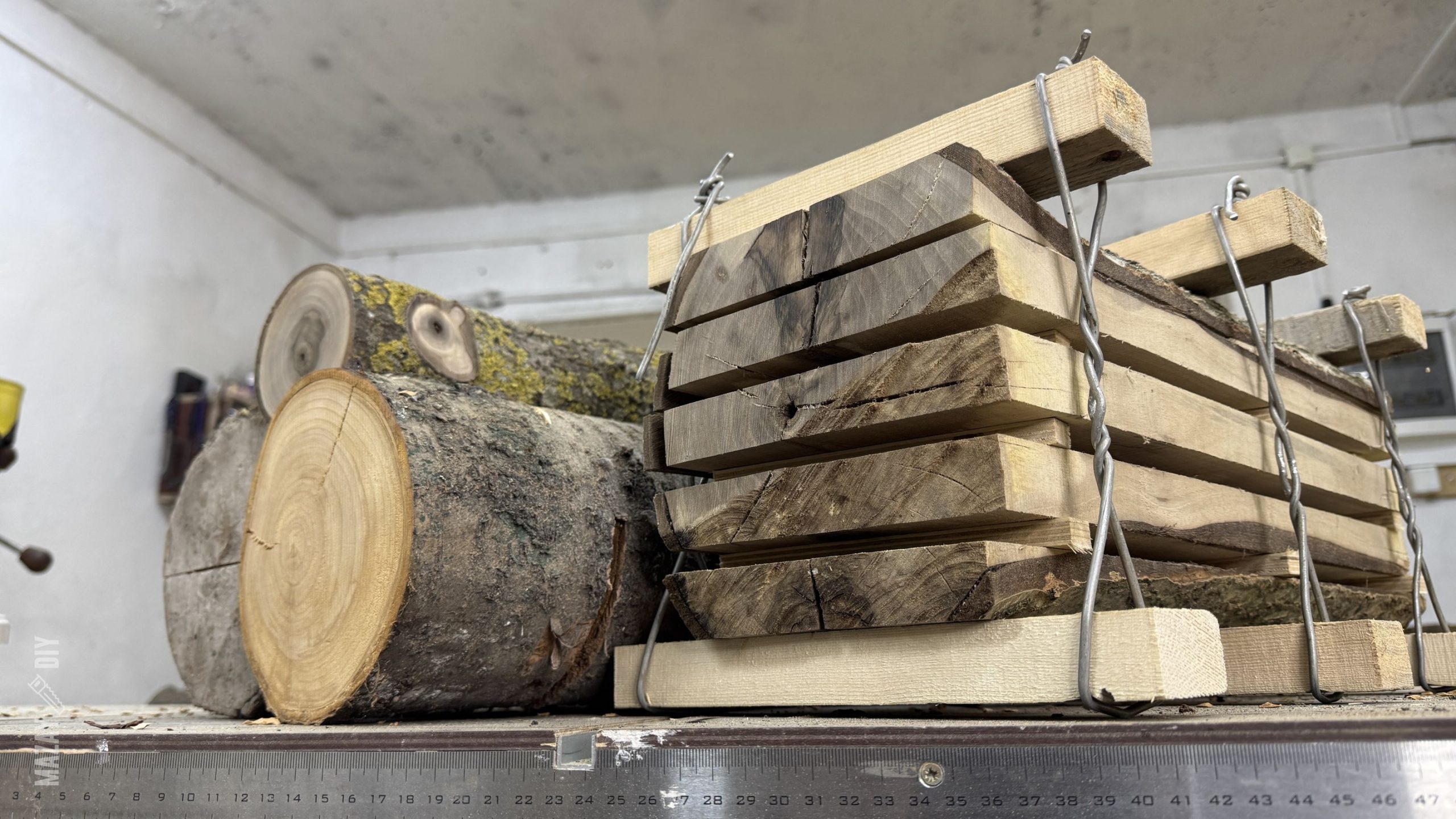

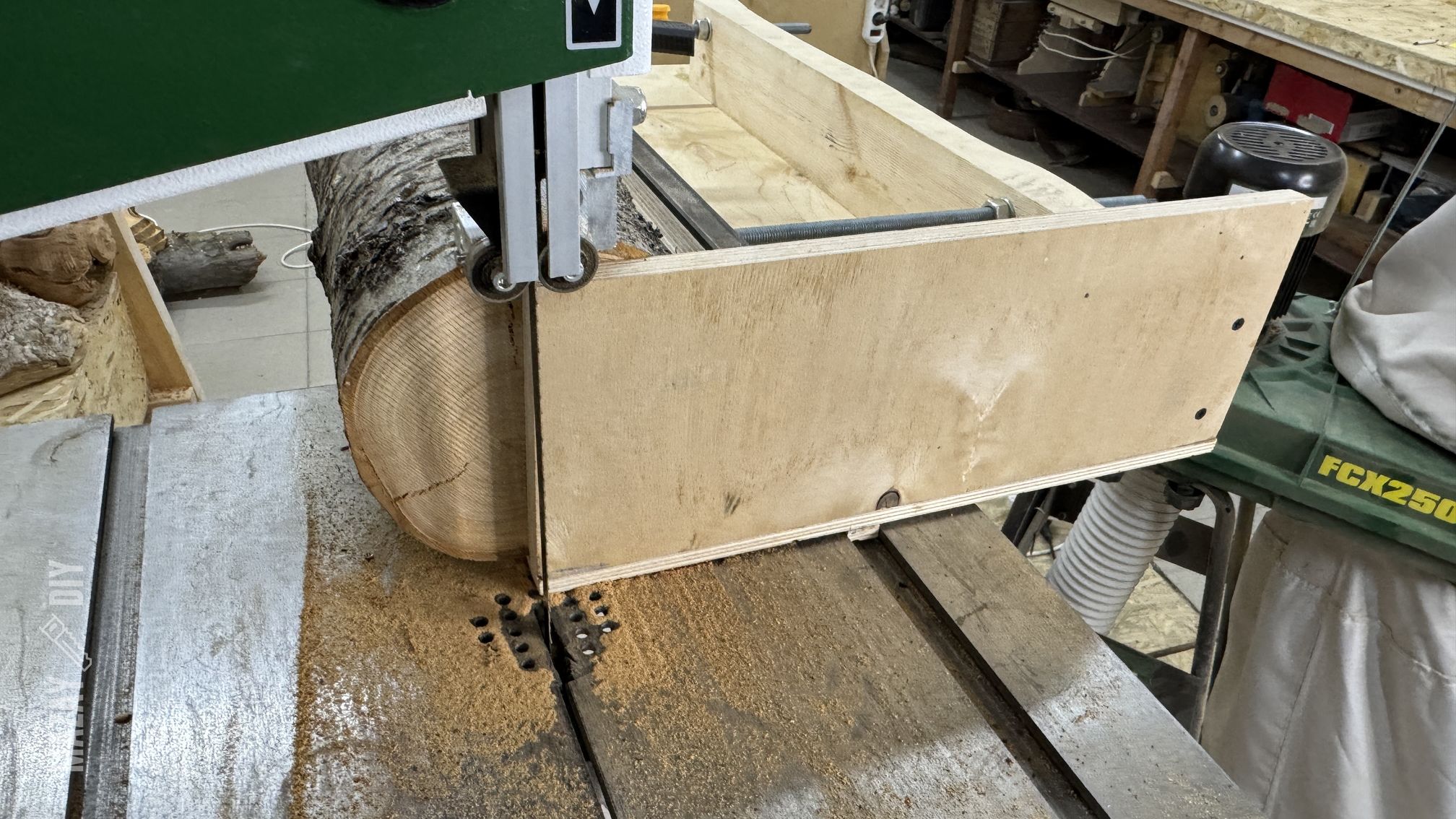

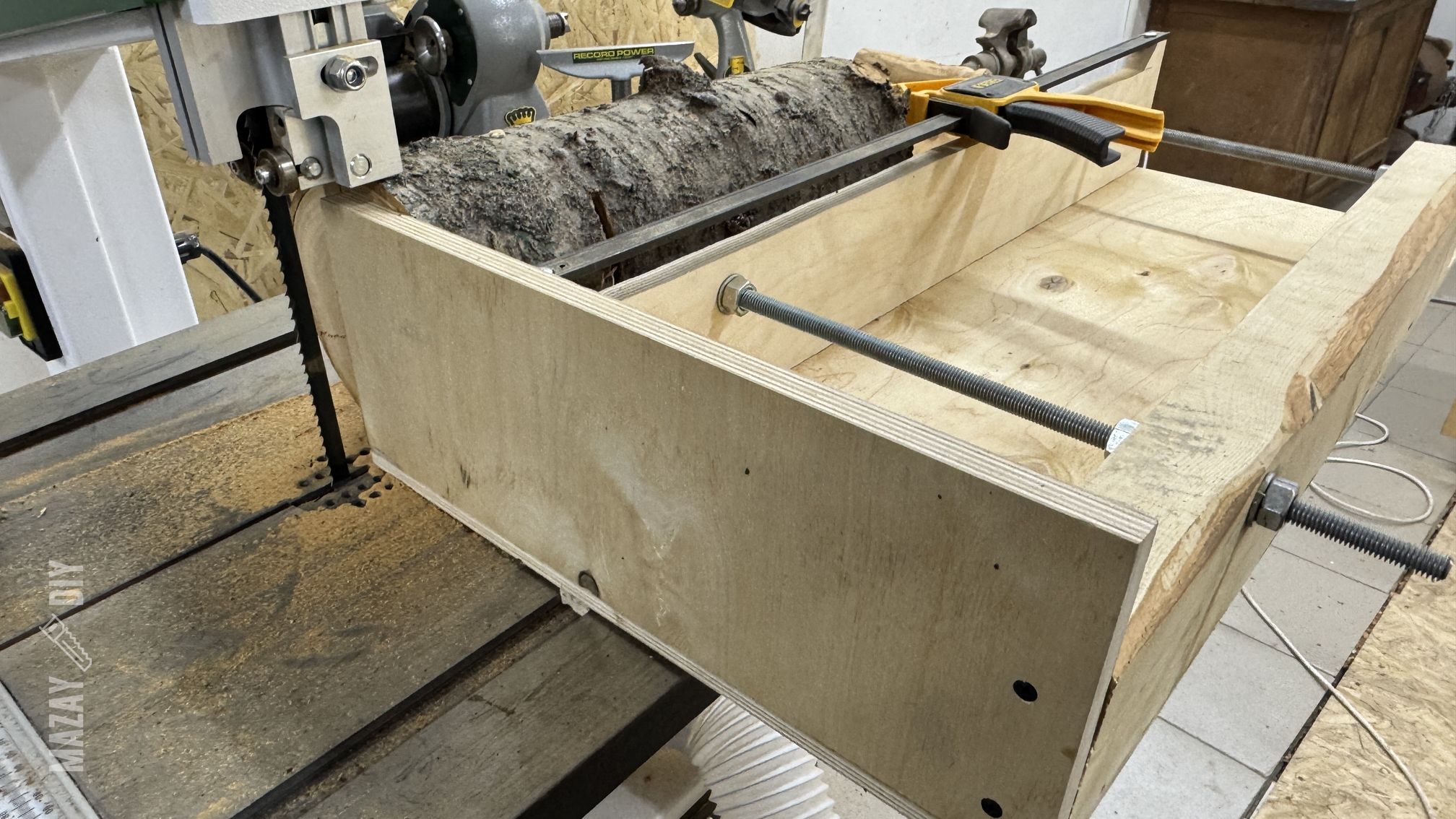

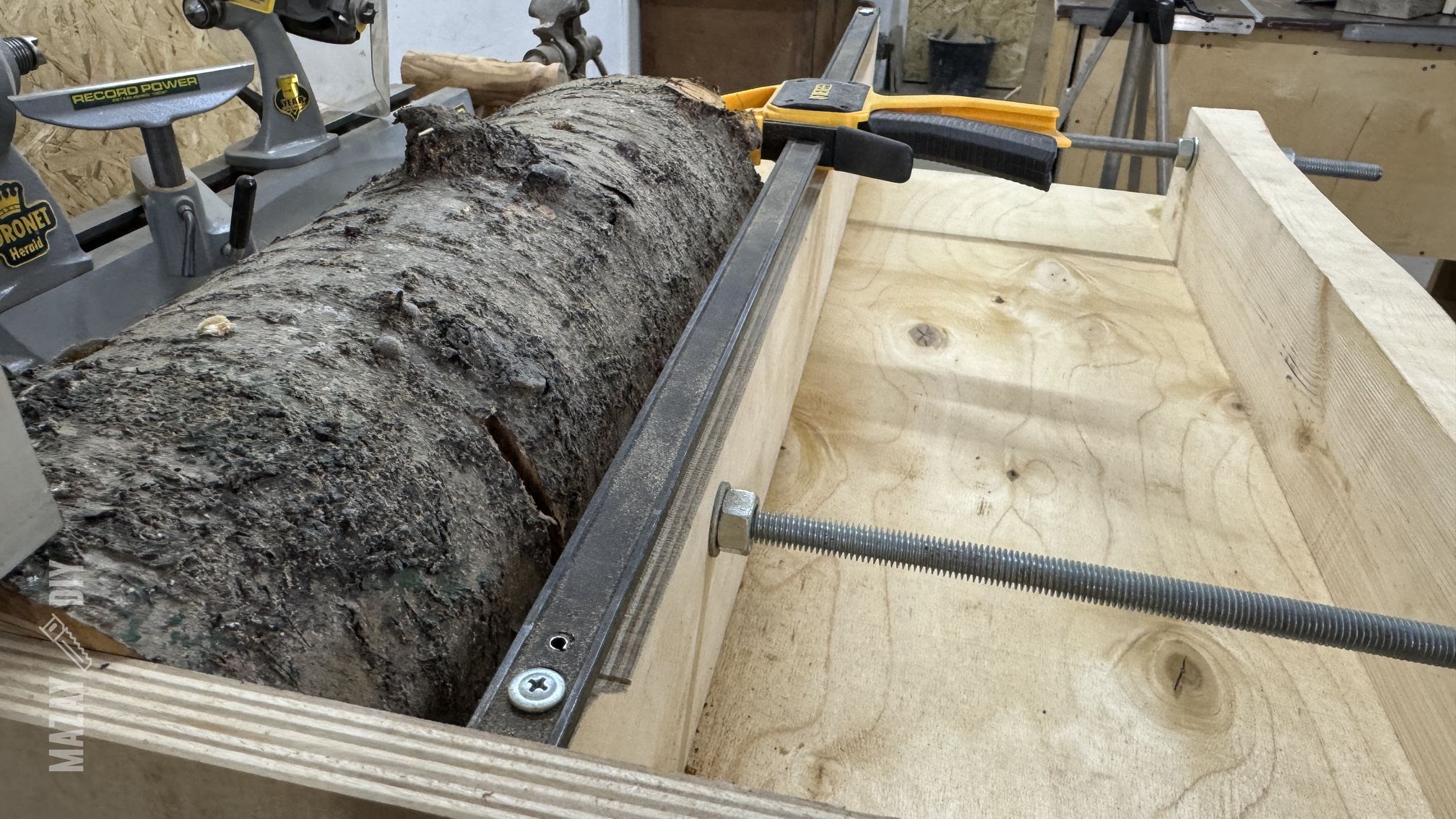

If you want to turn rounds and slabs into usable lumber without an expensive resawing setup, a simple bandsaw sled (log cradle + clamp) is an economical, safe, and repeatable solution. This article gives a short overview, safety tips, and free plans you can build in an afternoon with common shop materials.

Why build this jig?

1. Holds round logs steady and indexed for consistent slab thickness.
2. Keeps the log flat and supported across the table, reducing blade twist and vibration.
3. Gives repeatable, safe cuts with minimal setup and no fancy milling equipment.

What you’ll need (materials)

• Threaded rod M12, length=250 mm
• Flat washer M12
• Nut M12
• Wood Screws
• Plywood S=18 mm
• Plywood S=10 mm
• Lumber 50×100 mm

Tools required (minimum set)

Bandsaw (of course), drill/driver or drill press, measuring tape, clamps.

To make it I used:

• Homemade table saw
• Table saw fence
• Crosscut sled
• Homemade push blocks
• Ruler Marking Gauge
• Restored Old Drill Press

Safety notes

• Wear eye and hearing protection. Bandsaws kick up dust — use dust collection and a respirator for extended work.
• Never reach across a running blade; keep hands to the sides and use push sticks/push blocks.
• Make sure log is free of nails, stones, or foreign material before cutting.
• Ensure sled is solid and tenon fits the miter slot; a loose sled can twist and cause binding.
• If the log pinches or binds, stop the saw and adjust; binding can cause dangerous blade climb or breakage.

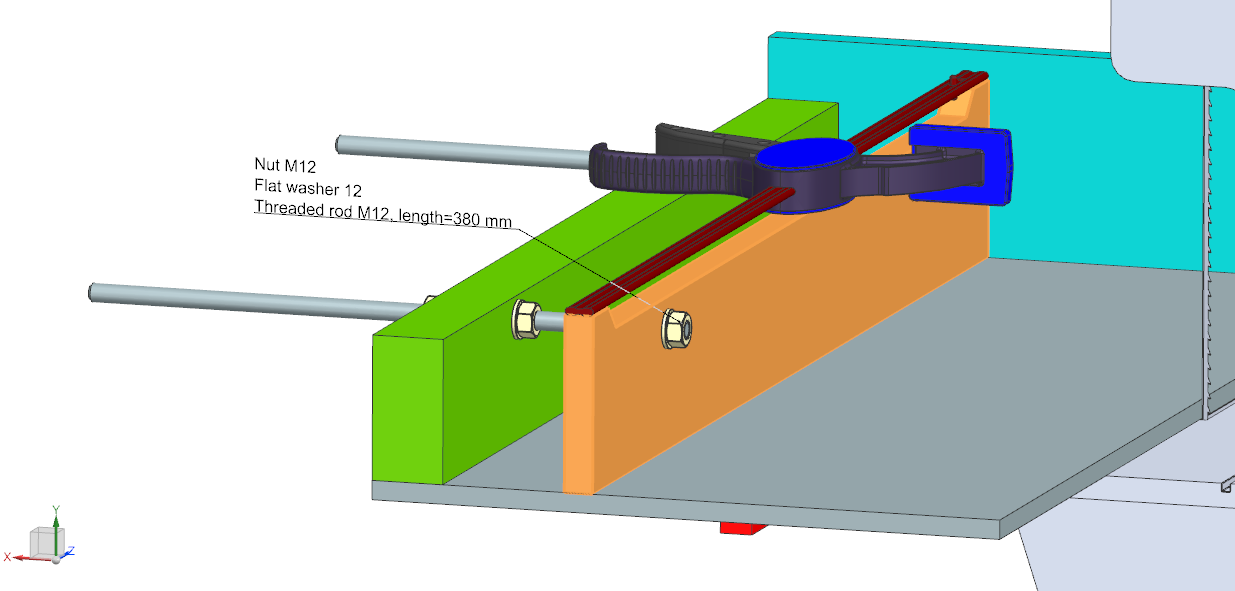

Band Saw mill Plans

Want printable plans?

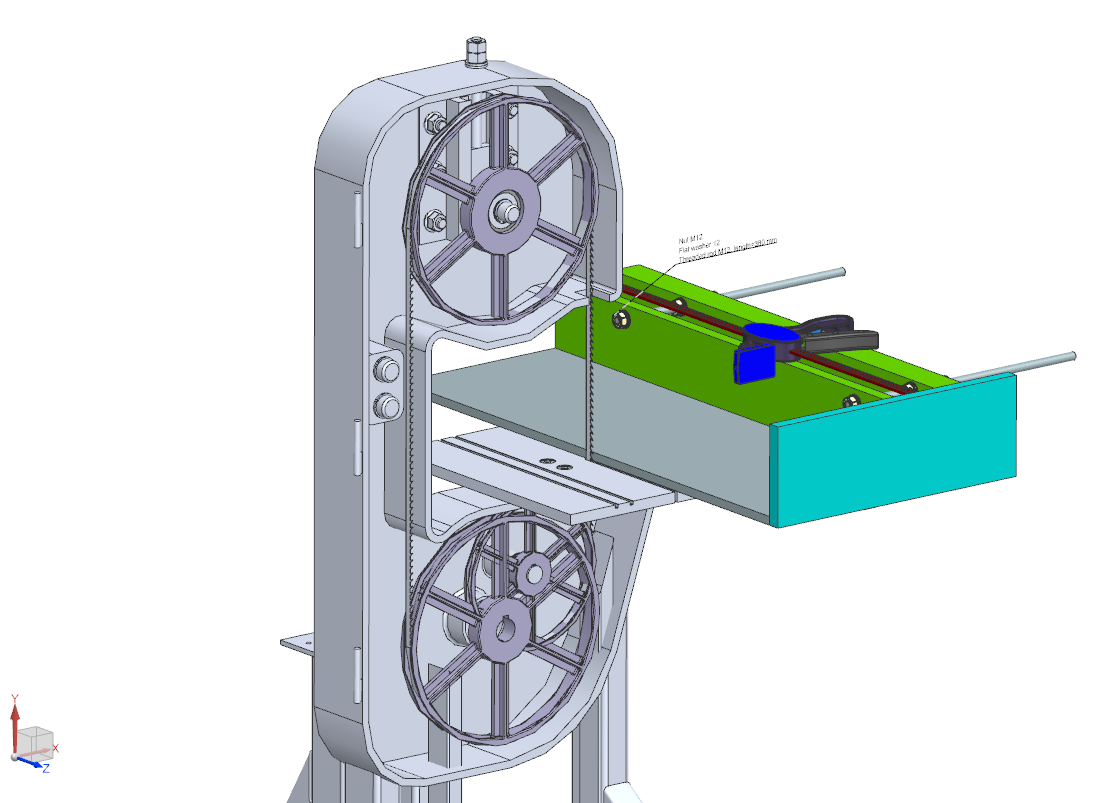

3D model

Download 3D model
