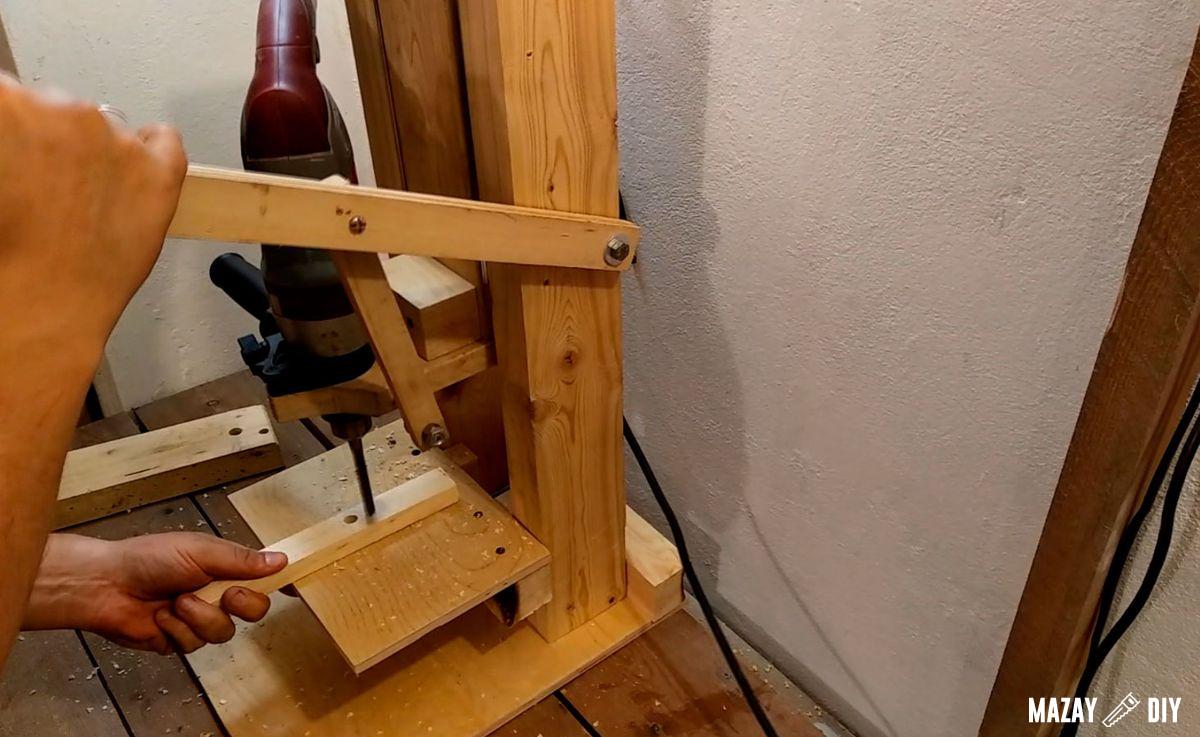

Today I will show you how to make a Drill Press Stand using Hand Drill
Materials
- Ball Bearing Drawer Slide 300mm/60kg x 1 pair
- Bolt M6 x 50 x 1
- Bolt M6 x 80 x 1
- Flat Fender washer M6 x 5
- Flat Fender washer M8 x 2
- Nut M6 x 4
- Nut M8 x 4
- T-nut M8 x 2
- Threaded rod M8, length=180 mm
- Wood to metal dowel M8x80x 1
- Screw-In Hook x 2
- Spring x 2
- Plywood 12 mm
- Plywood 20 mm
- Lumber 15×30 mm
- Lumber 20×60 mm
- Lumber 25×50 mm
- Lumber 45×90 mm
- Lumber 50×50 mm

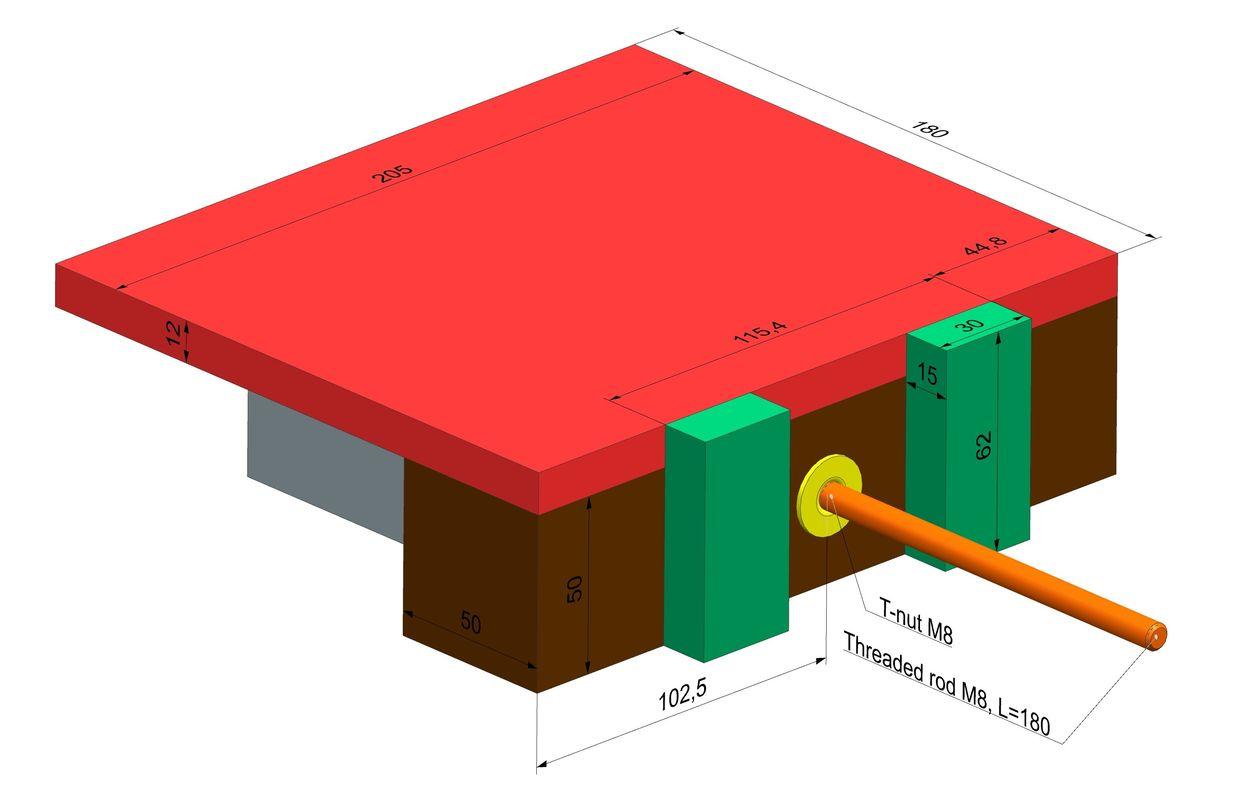

Homemade drill press stand Plans
[indeed-social-locker sm_list=’fb,tw,pt,vk,ok’ sm_template=’ism_template_1′ sm_list_align=’horizontal’ sm_display_counts=’false’ sm_display_full_name=’true’ unlock_type=1 locker_template=2 sm_d_text=’
This content is locked
Share This Page To Unlock and DOWNLOAD PDF!’ ism_overlock=’default’ ]
Download free plans with dimensions (PDF)
[/indeed-social-locker]

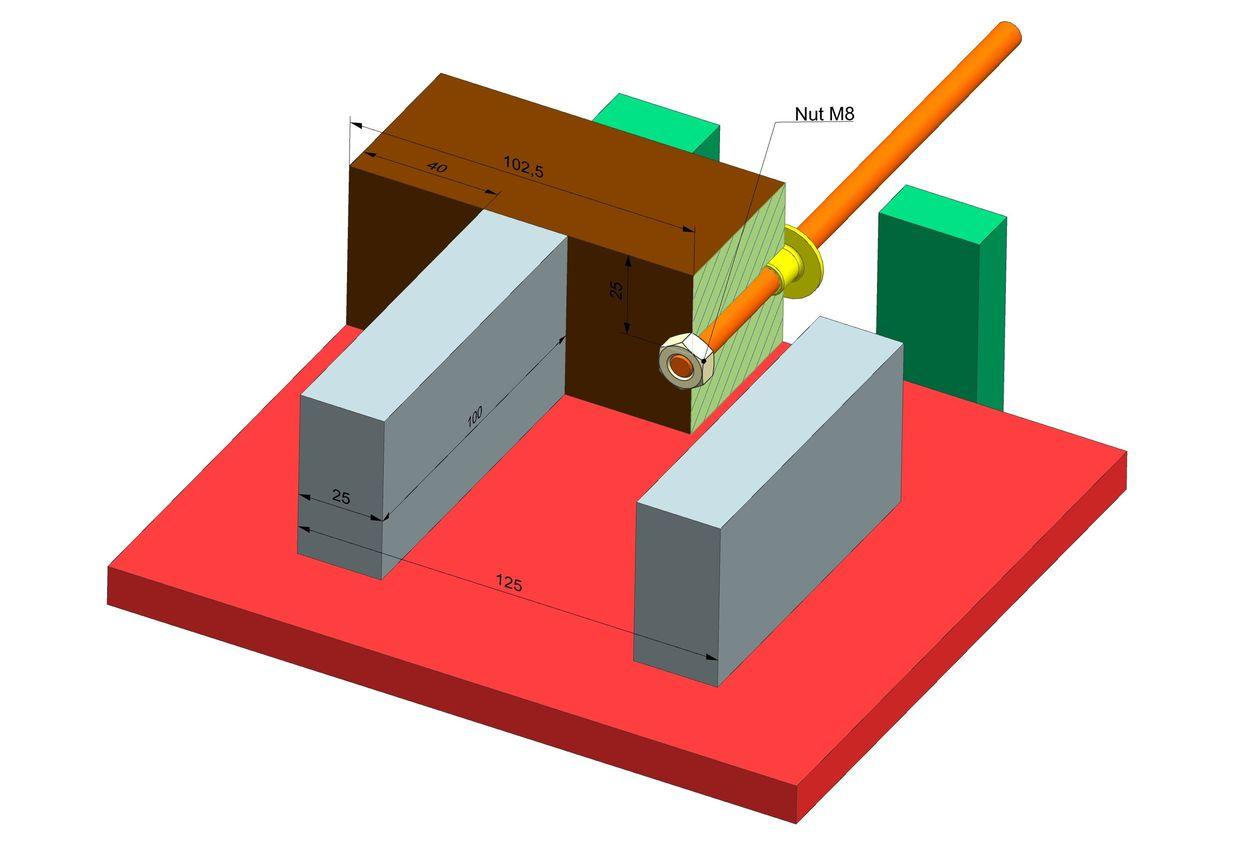

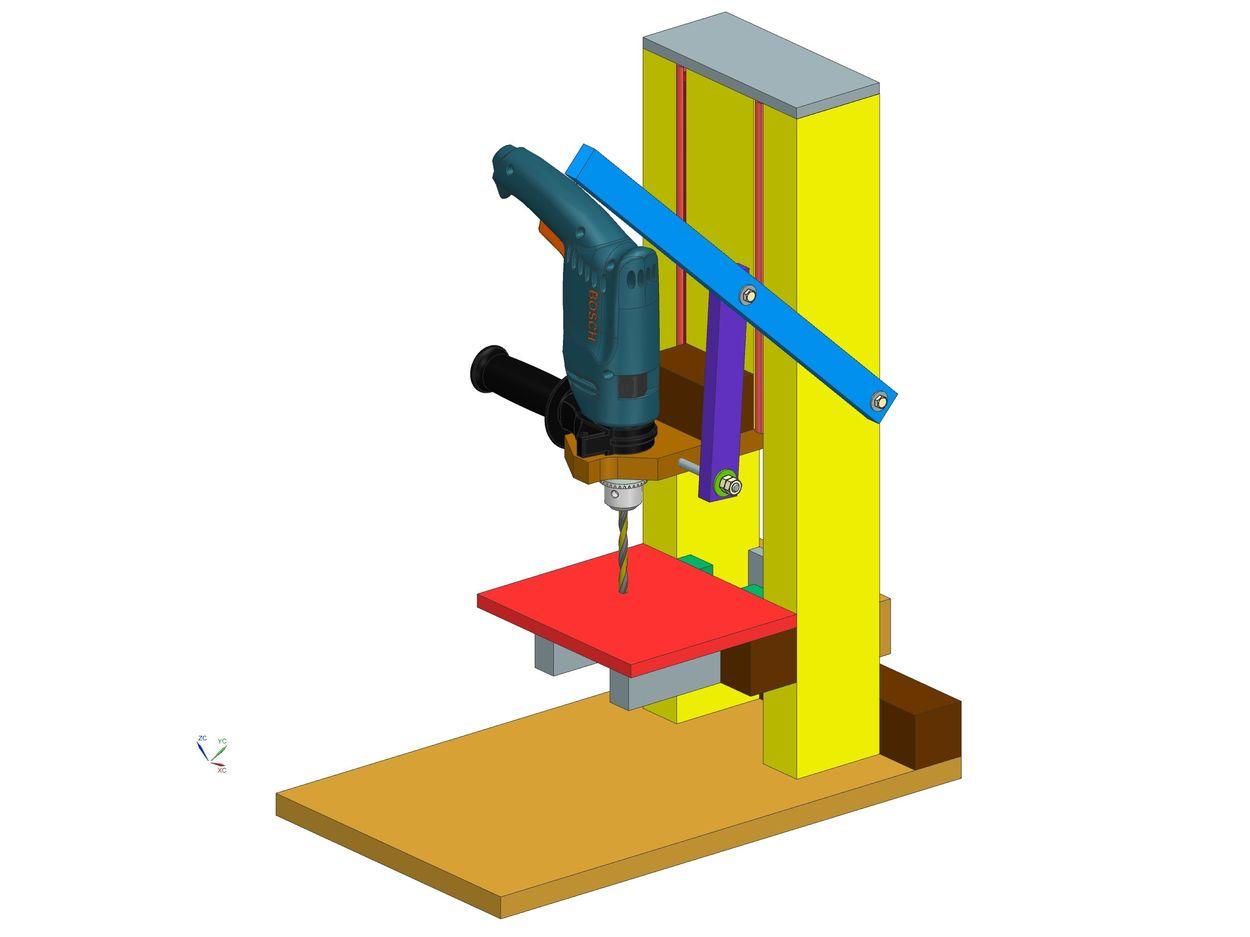

3D model
