Homemade Jigsaw Table

How to make a jigsaw table:

homemade jigsaw table

Materials

  1. Plywood 12 mm
  2. Plywood 18 mm
  3. Lumber 40×40 mm or Lumber 45×45 mm
  4. Wood Chipboard or Plywood 18 mm
  5. Steel angle bar 25x25x3

Plans

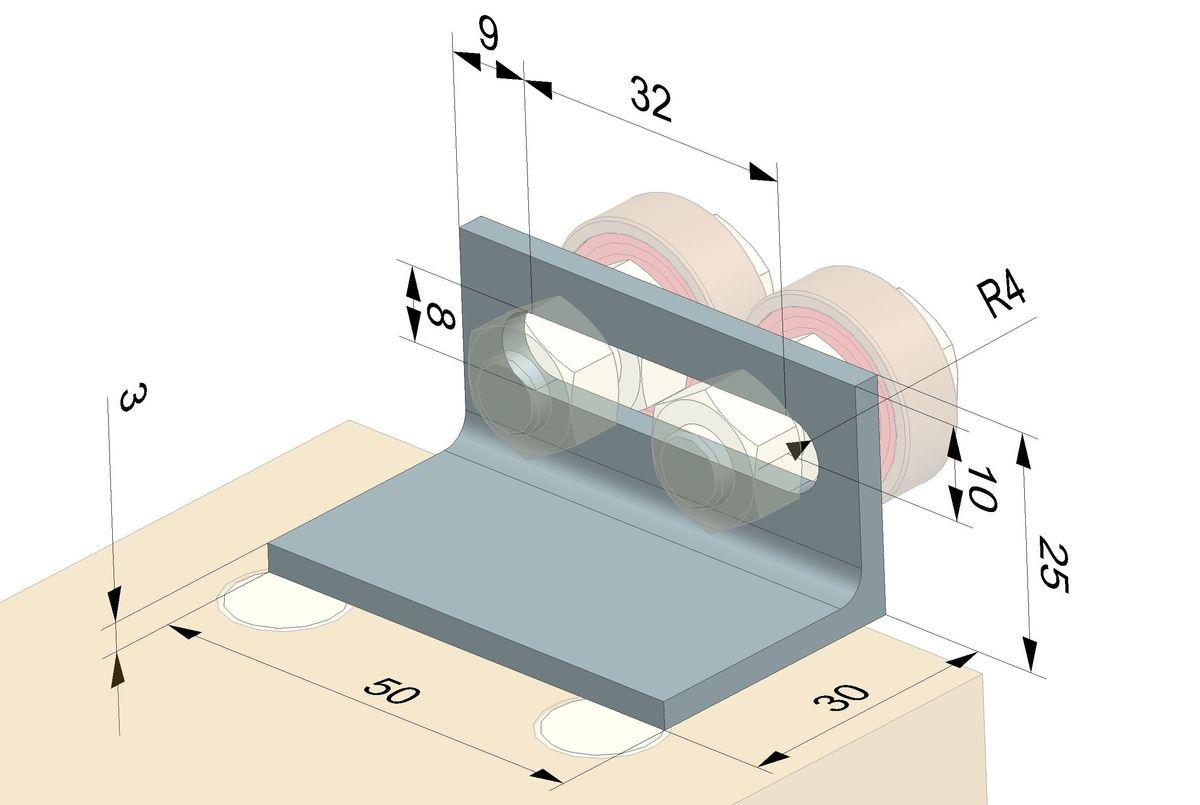

jigsaw table plans

This content is locked

Share This Page To Unlock and DOWNLOAD PDF!

3D model

homemade jigsaw table

Download 3D model

To make it I used:

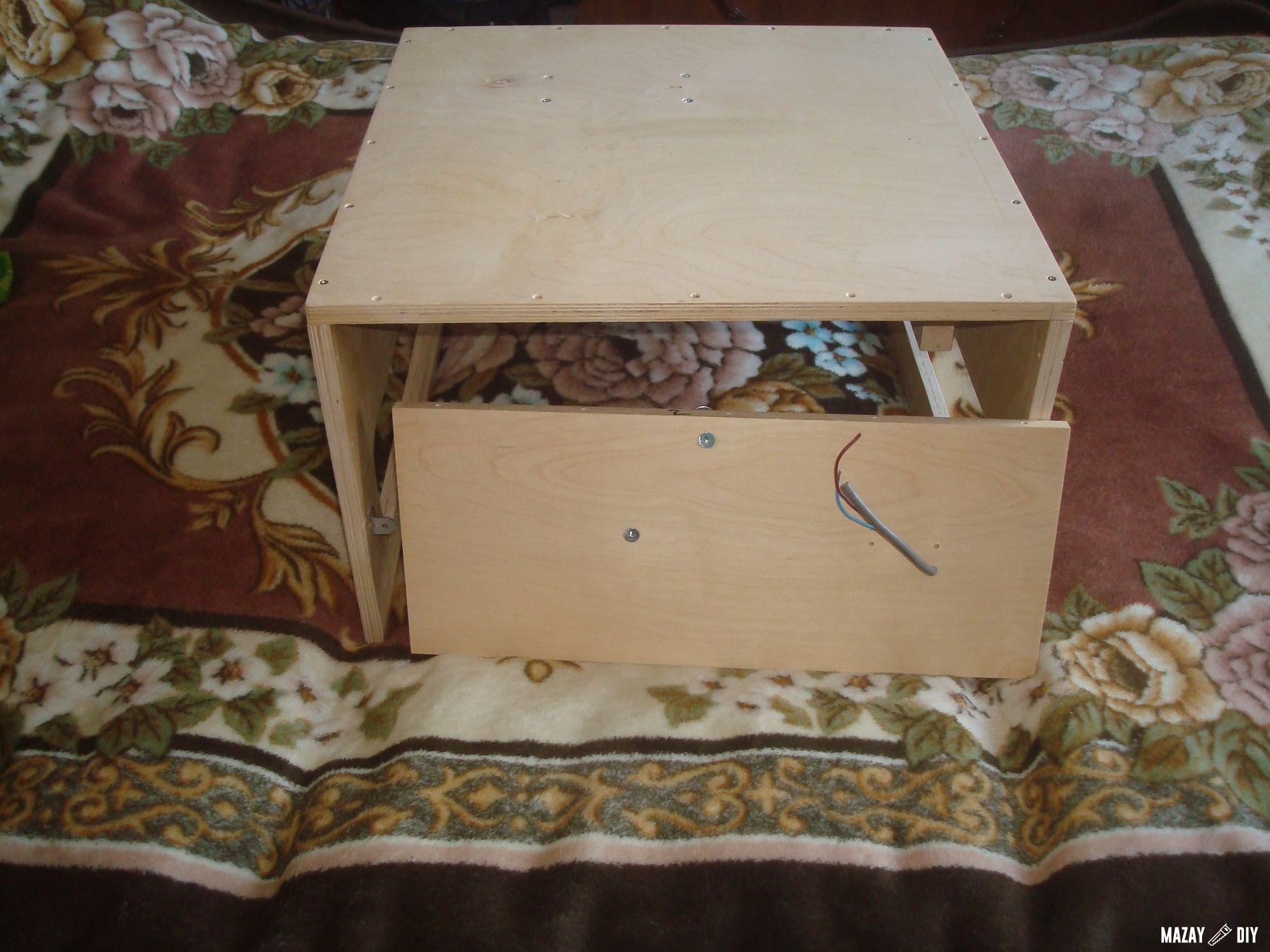

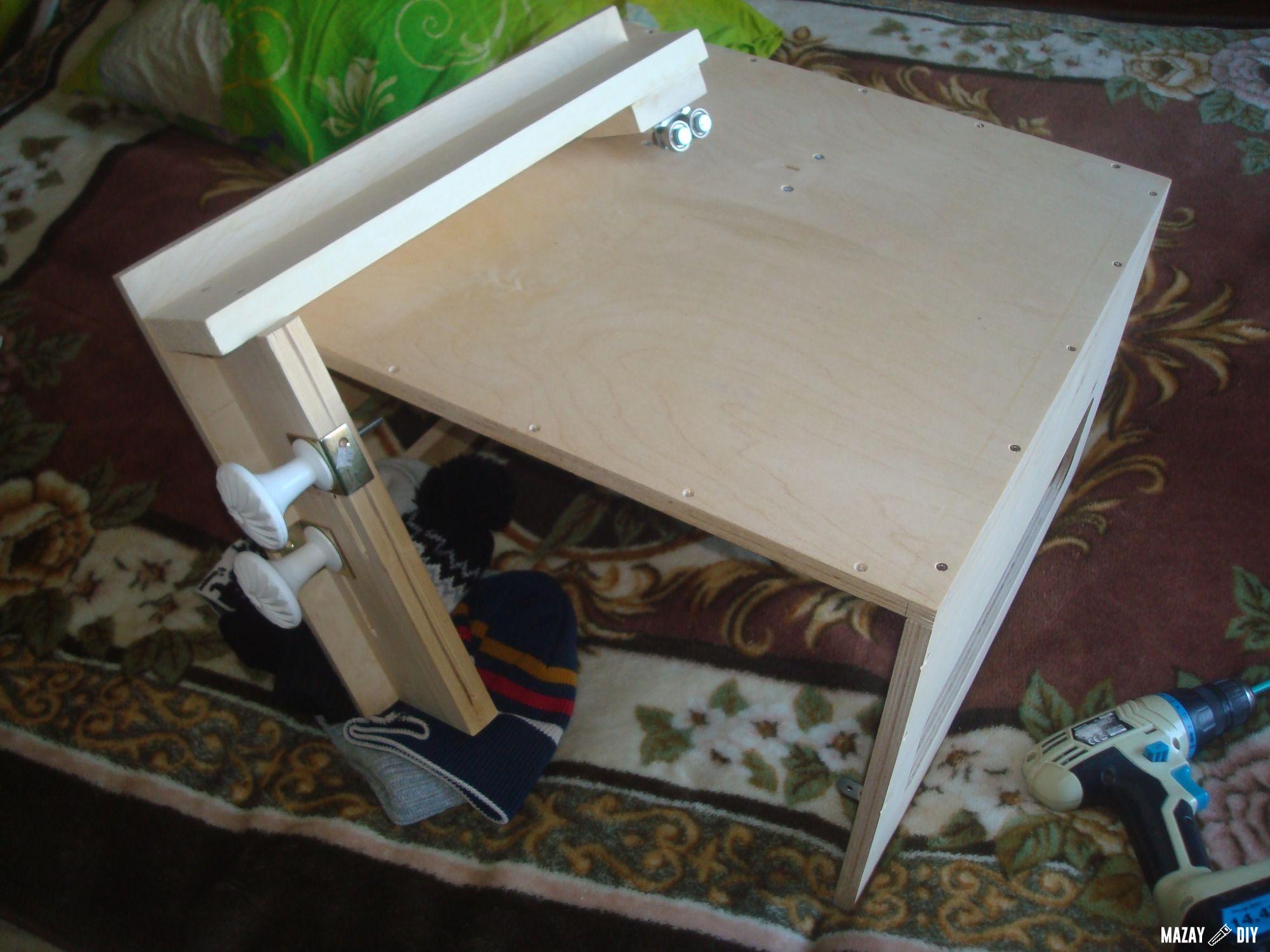

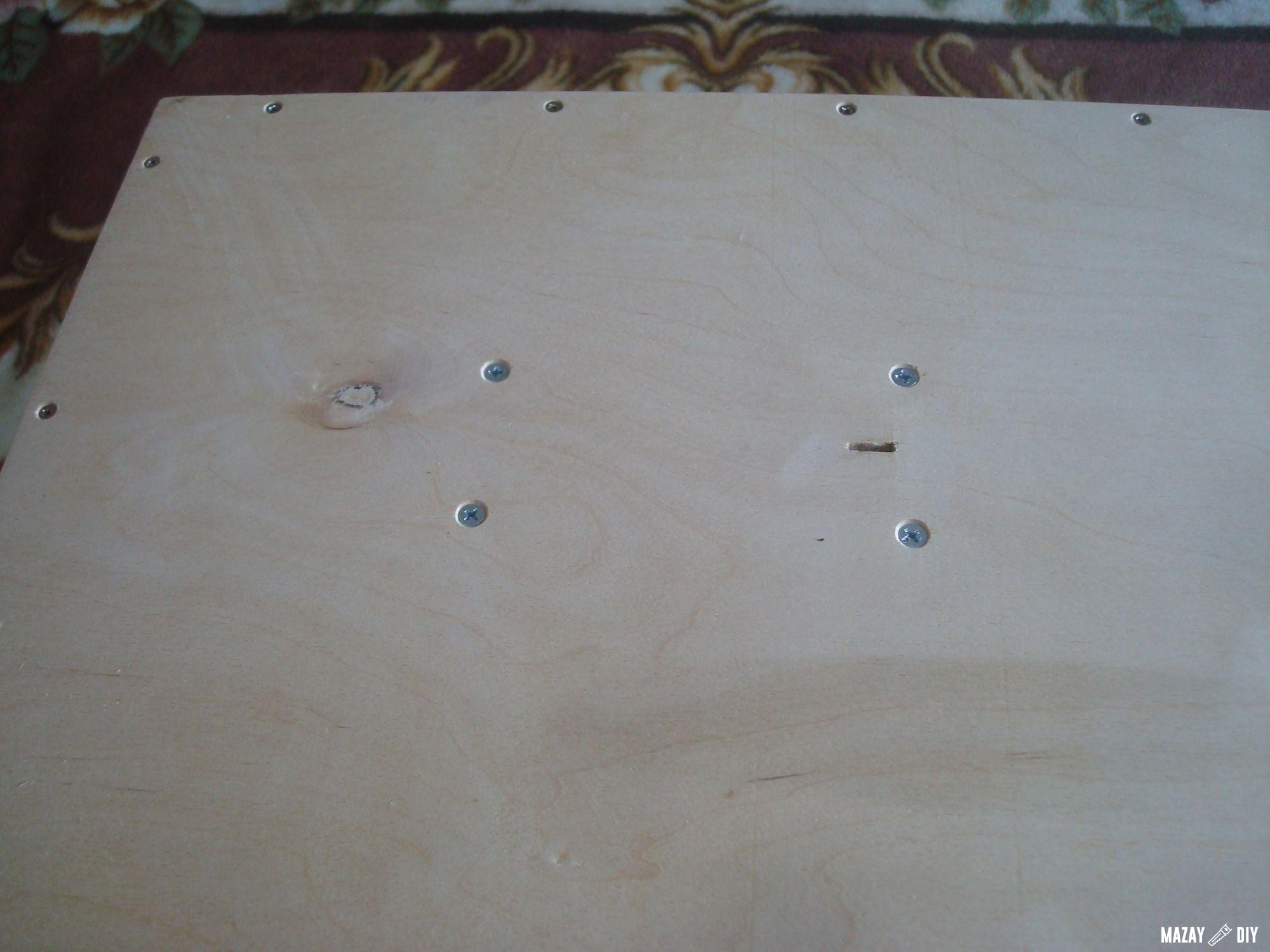

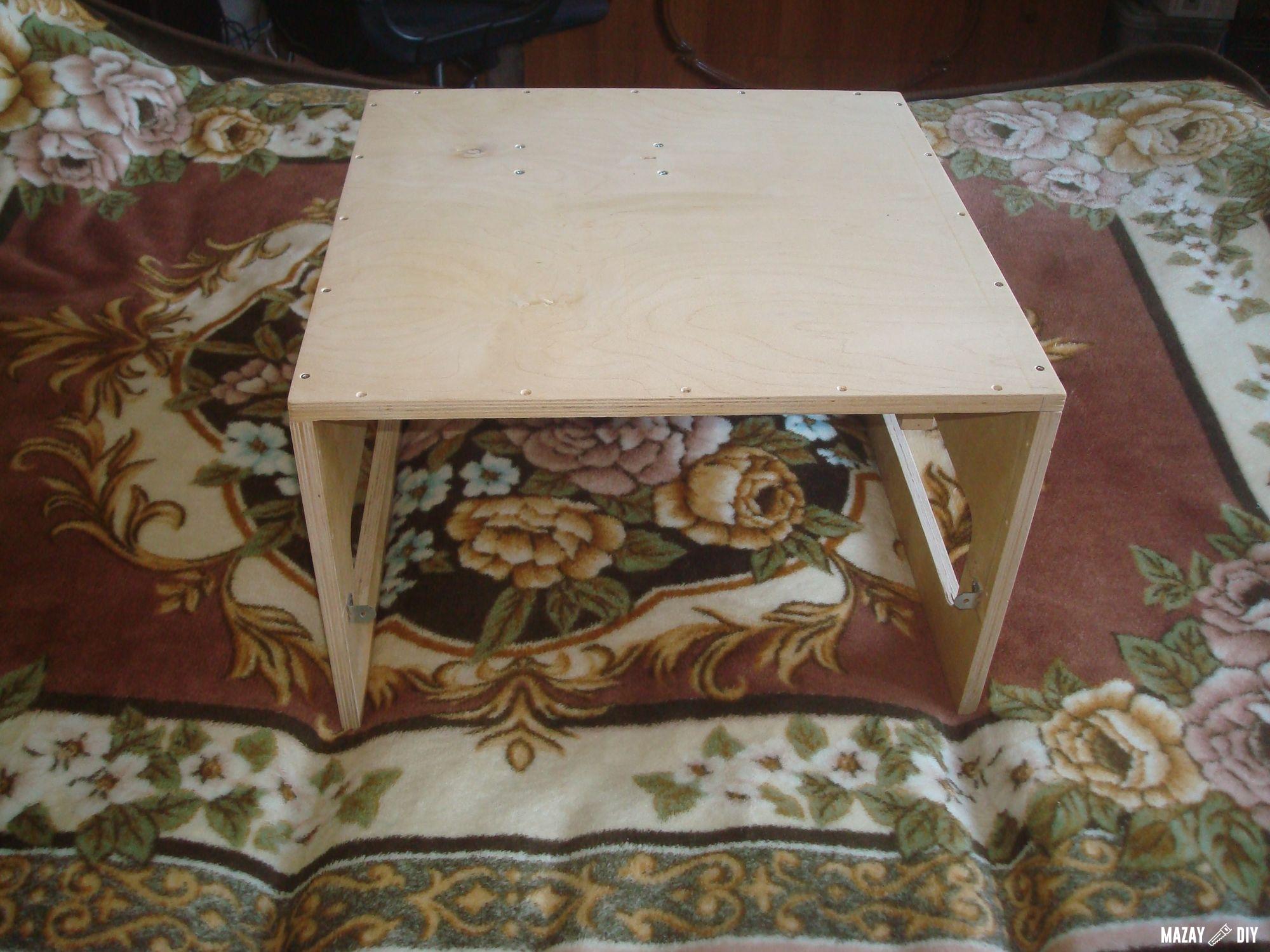

Jigsaw Table modification by Rom Burlakov

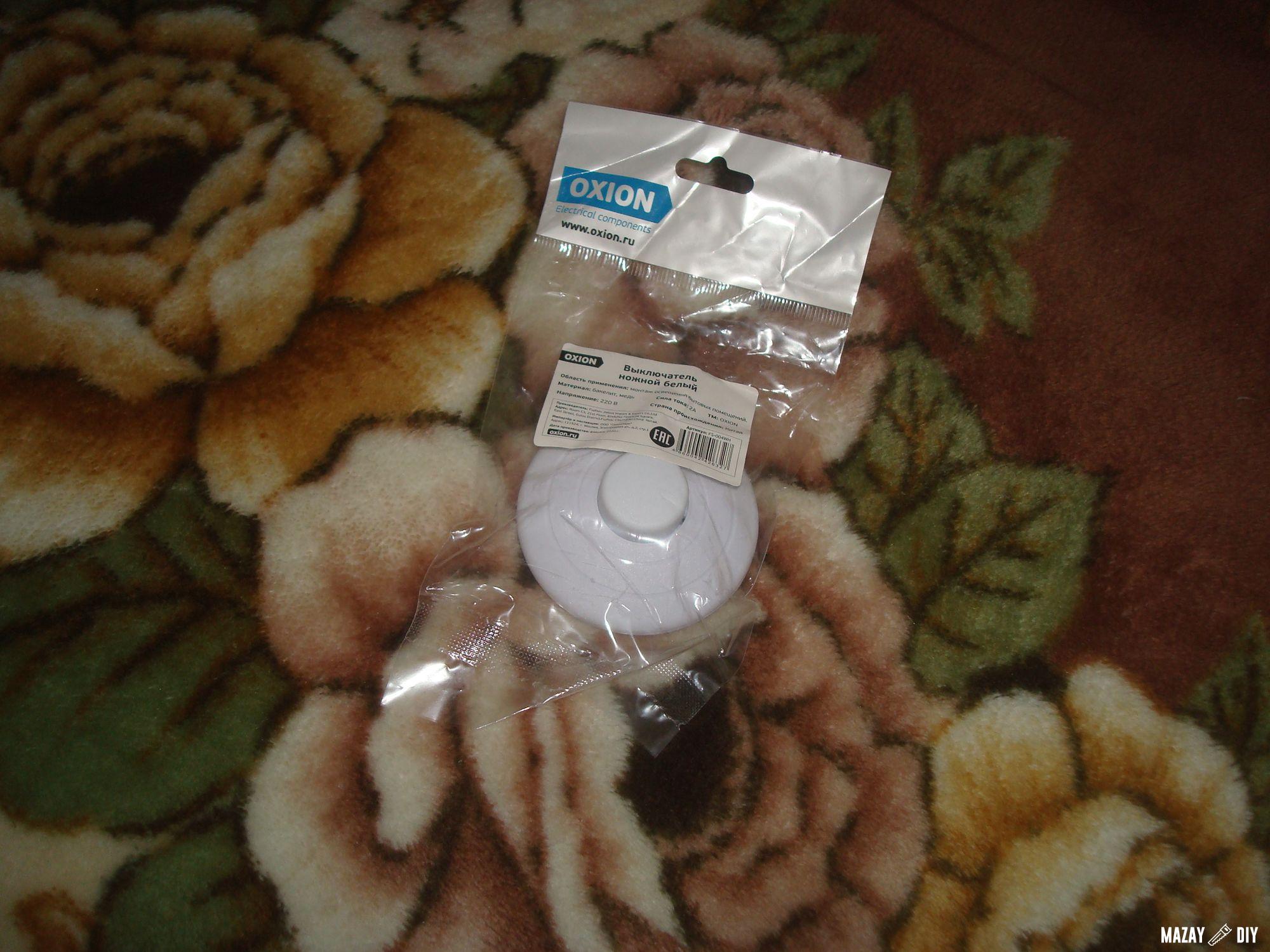

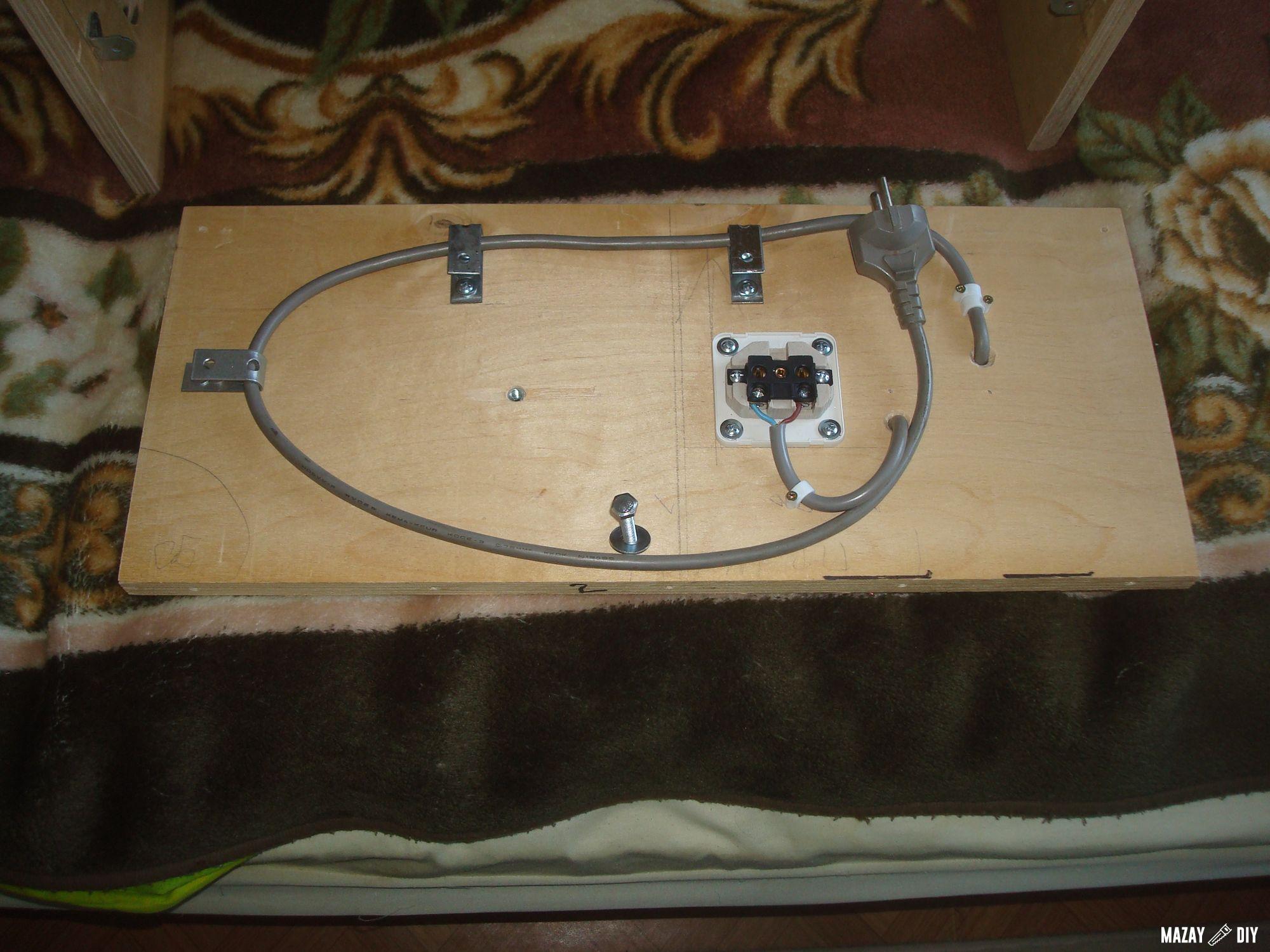

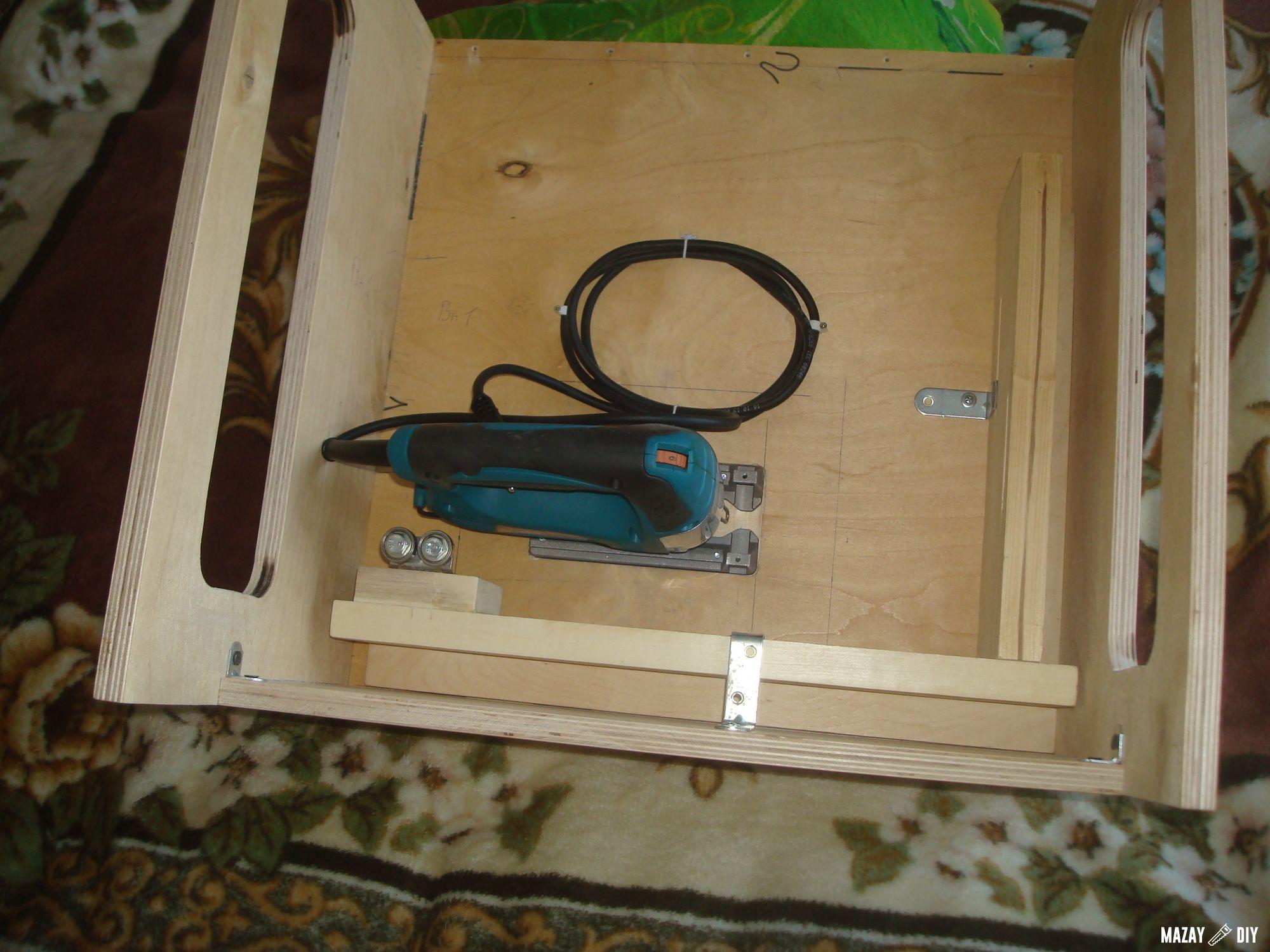

My subscriber Rom Burlakov made a table according to my drawings, slightly modifying the design: “I slightly changed the design. I removed the wall for electrical installation. Makita jigsaw plugged it into the socket from the inside, then turn off the switch from the outside to the network. the beginning of the summer season. The device with bearings is mounted inside the box on the corners. I am thinking of installing handles for easy carrying.”
Makita Jigsaw Table

Makita Jigsaw Table

Makita Jigsaw Table

Makita Jigsaw Table

Makita Jigsaw Table

Makita Jigsaw Table

Makita Jigsaw Table

7 Comments
  1. Fred says

    Is a plan with measurements in inches available?

  2. Mazay says

    Unfortunately, I do not have such drawings.

  3. warren alexander says

    Here’s what google says.

    Length 1 Centimeter = 0.393701 Inches
    Formula divide the length value by 2.54 to get inches

    or go to this address for full calculator https://www.ginifab.com/feeds/cm_to_inch/
    gives detailed measurements you can convert from plans

    MM, CM to inches conversion table
    MM CM Approximate Fractional Inches
    9 mm 0.9 cm Just short of 3/8 Inch
    10 mm 1.0 cm Little over 3/8 Inch
    11 mm 1.1 cm 7/16 Inch
    12 mm 1.2 cm Just short of 1/2 Inch

  4. Monique says

    Unfortunately, I can’t download the jigsaw table plan. Could you help me? Thanks.

  5. Mazay says

    Monique, here is a direct link to the file – https://mazaydiy.com/plans/jigsaw-table-plans.pdf
    Hope this helps you!

  6. lucivaldo pinheiro says

    vc é bom obrigado pelo vídeo, ficou show e também pelo plano

  7. sarah harnum says

    for those who need to convert metric to imperial, 25mm = 1 inch. 2.54 cm = 1 inch.
