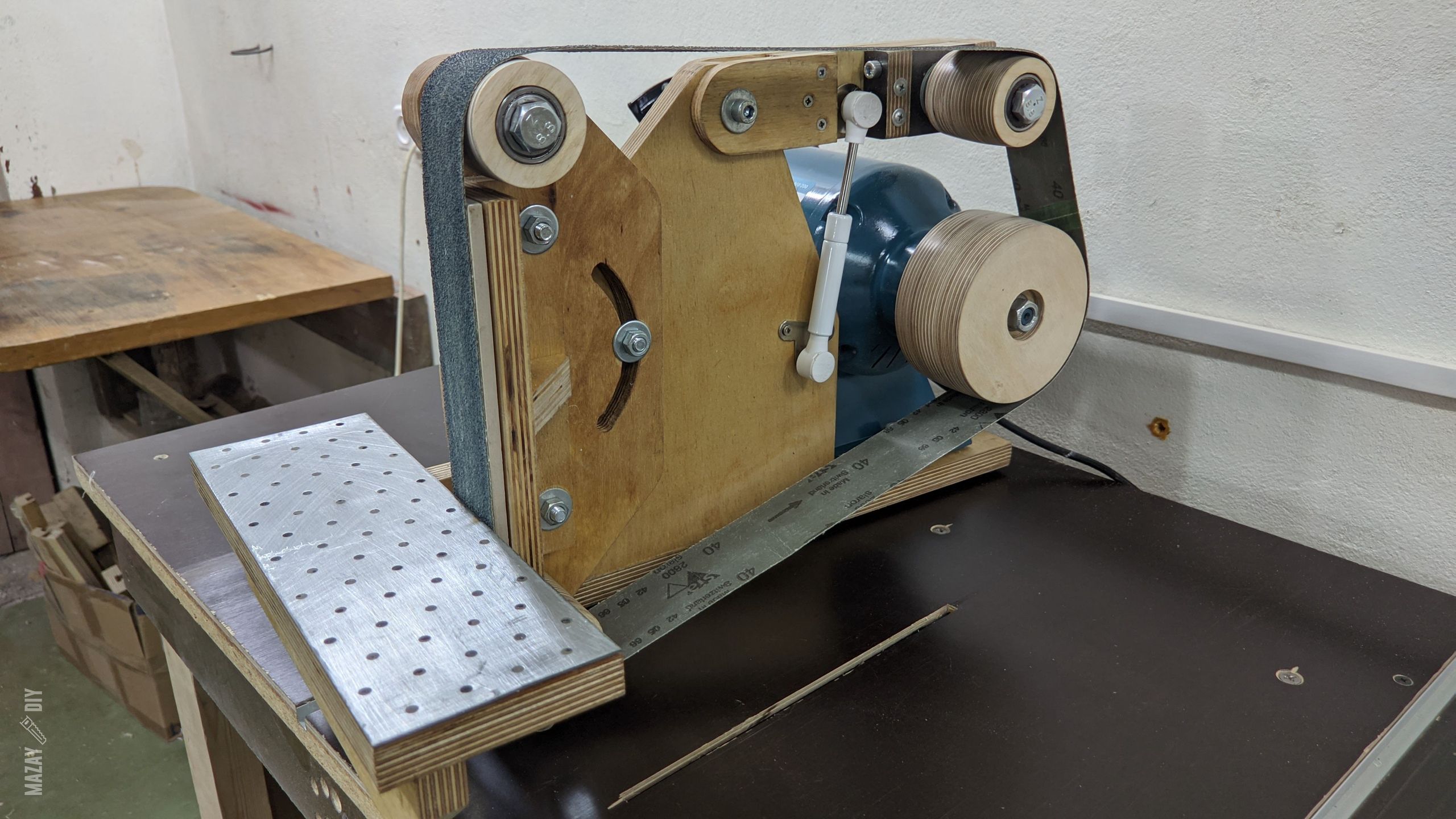

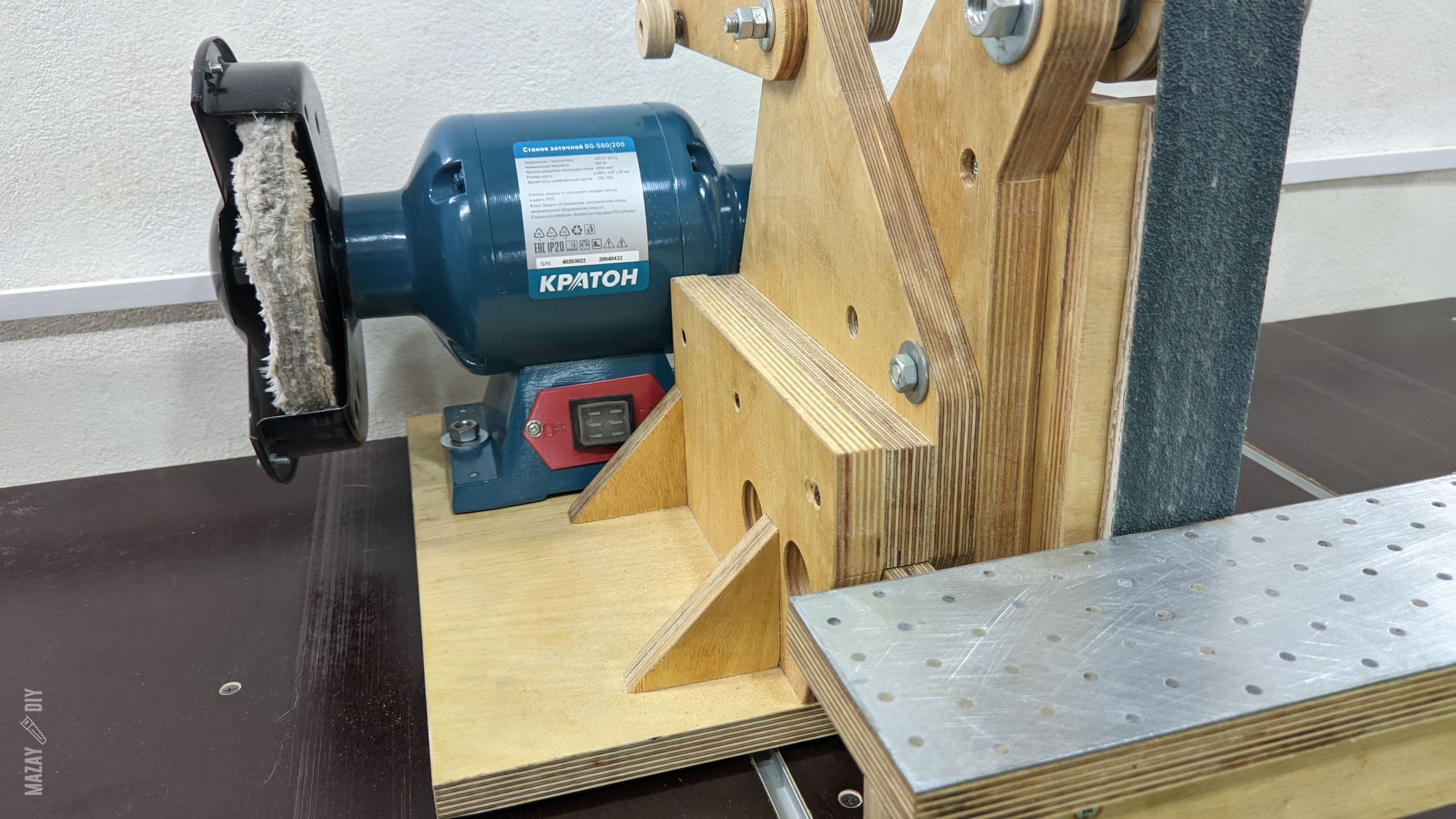

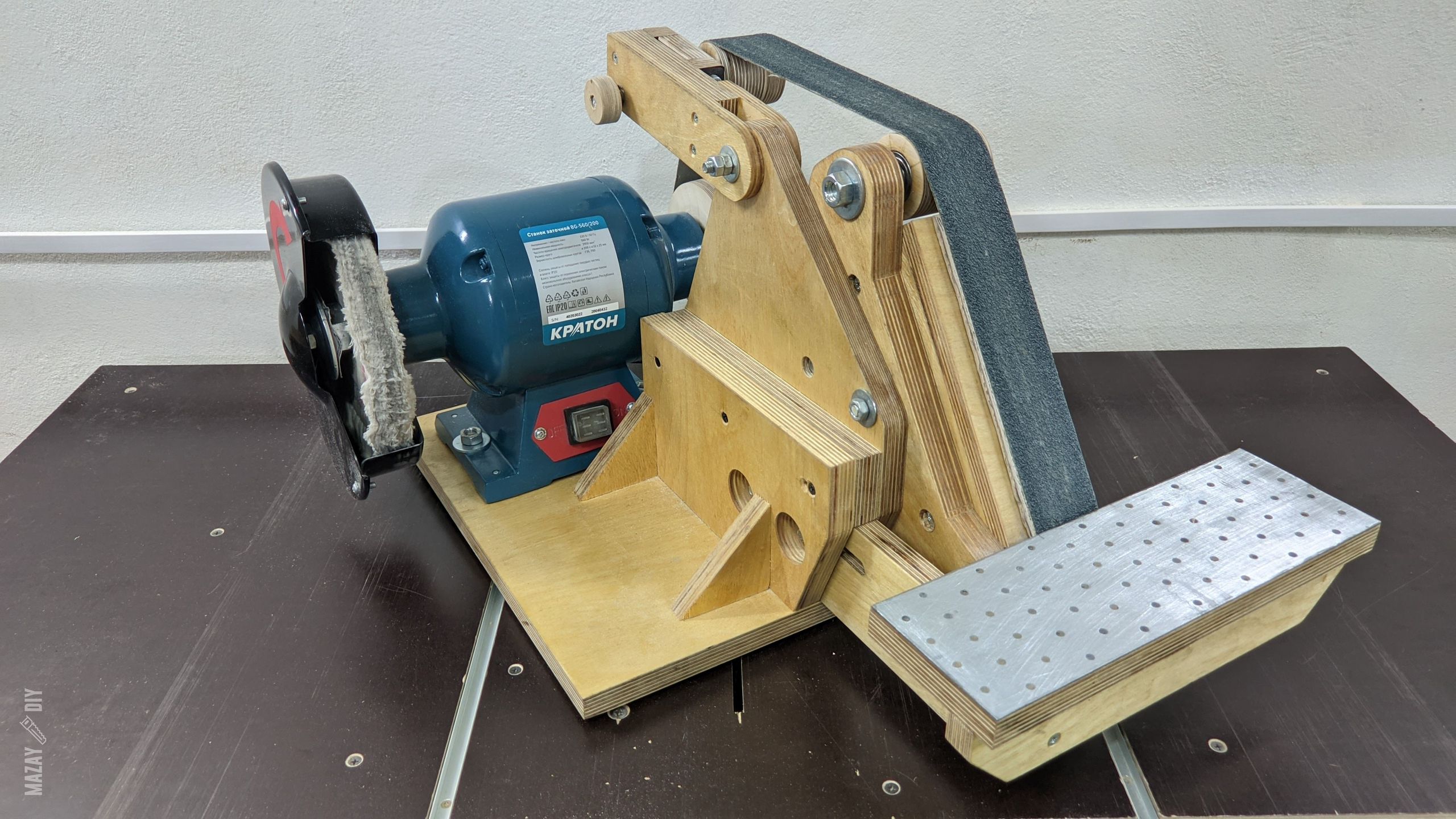

Today I will show you how to make 2 x 48 Belt Grinder out of Bench Grinder or AC motor.
- 2 x 48 sanding belt
- Bearing 6201 ZZ
- Bench Grinder
- Bolt M6 x 45
- Bolt M8 x 40
- Bolt M10 x 50
- Bolt M12 x 100
- Flat Connecting Perforated Plate 100х300х2 mm
- Flat Fender washer M8
- Flat Fender washer M10
- Flat Fender washer M12
- Flat washer 6
- Flat washer 12
- Hexagon socket head cap screw DIN 912 M6x40
- Hexagon socket head cap screw DIN 912 M8x65
- Nut M8
- Nut M10
- Nut M12
- Plywood 10 mm
- Plywood 18 mm
- Plywood 20 mm
- Porcelain stoneware 50х200 mm
- Tube Ø16 x 1
Knife making Belt grinder Plans
This content is locked
Share This Page To Unlock and DOWNLOAD PDF!

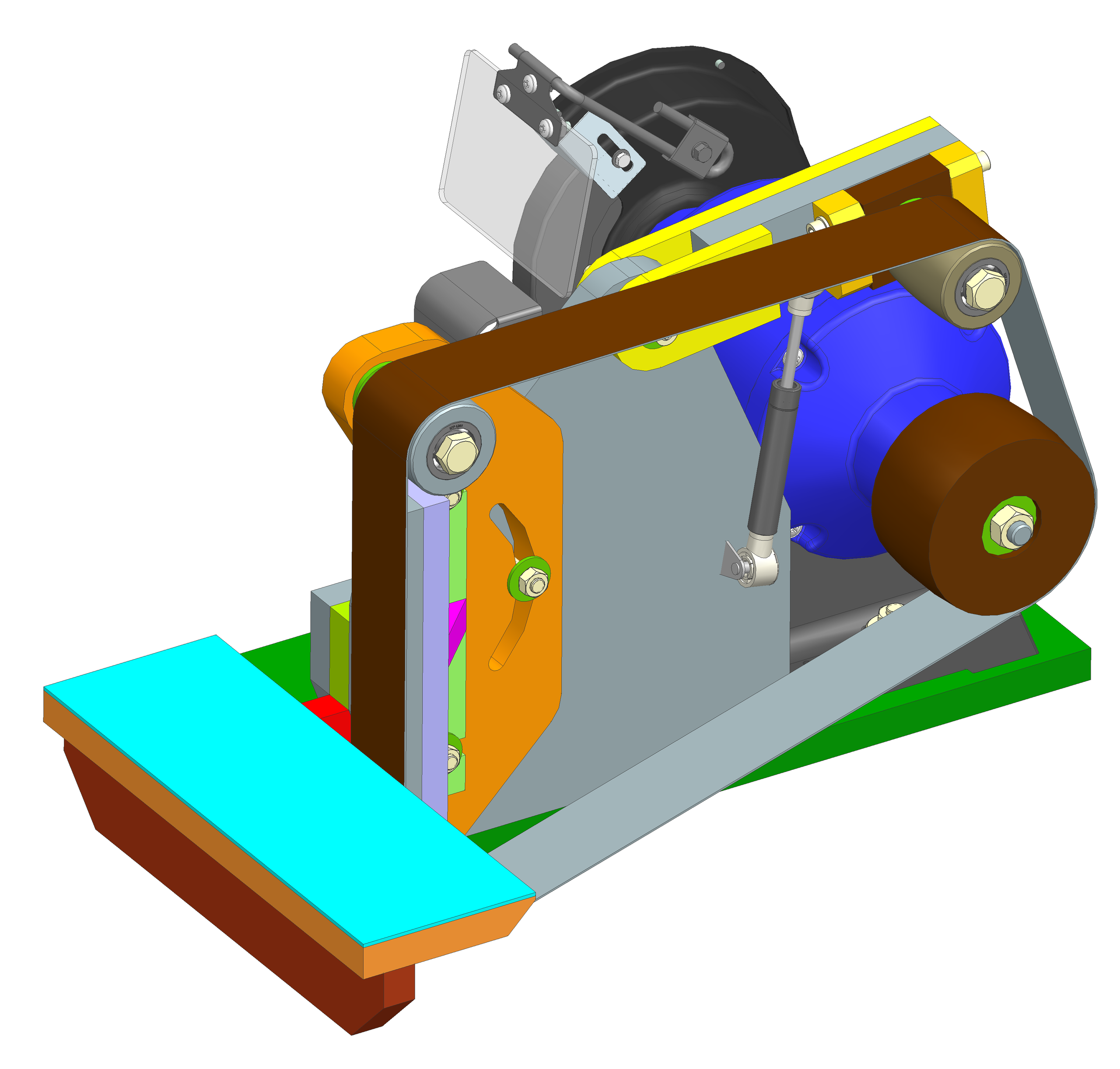

Knife making Belt grinder 3D model
To make it I used my homemade tools:
Making Belt grinder wheels
