Today I will show you how to make a drill press stand out of plywood
- Anchor bolt M8 x 100 x 3
- Ball Bearing 6202 x 2
- Bolt M8 x 50 x 4
- Bolt M8 x 80 x 1
- Flat Head Machine Screw M5x30 x 18
- Flat Head Machine Screw M5x50 x 2
- Flat washer 8x 5
- Linear Ball Bearing SC16UU x 4
- Linear Motion Rods 16 mm, L=400 mm x 1
- Linear Motion Rods 16 mm, L=600 mm x 2
- Nut M8 x 9

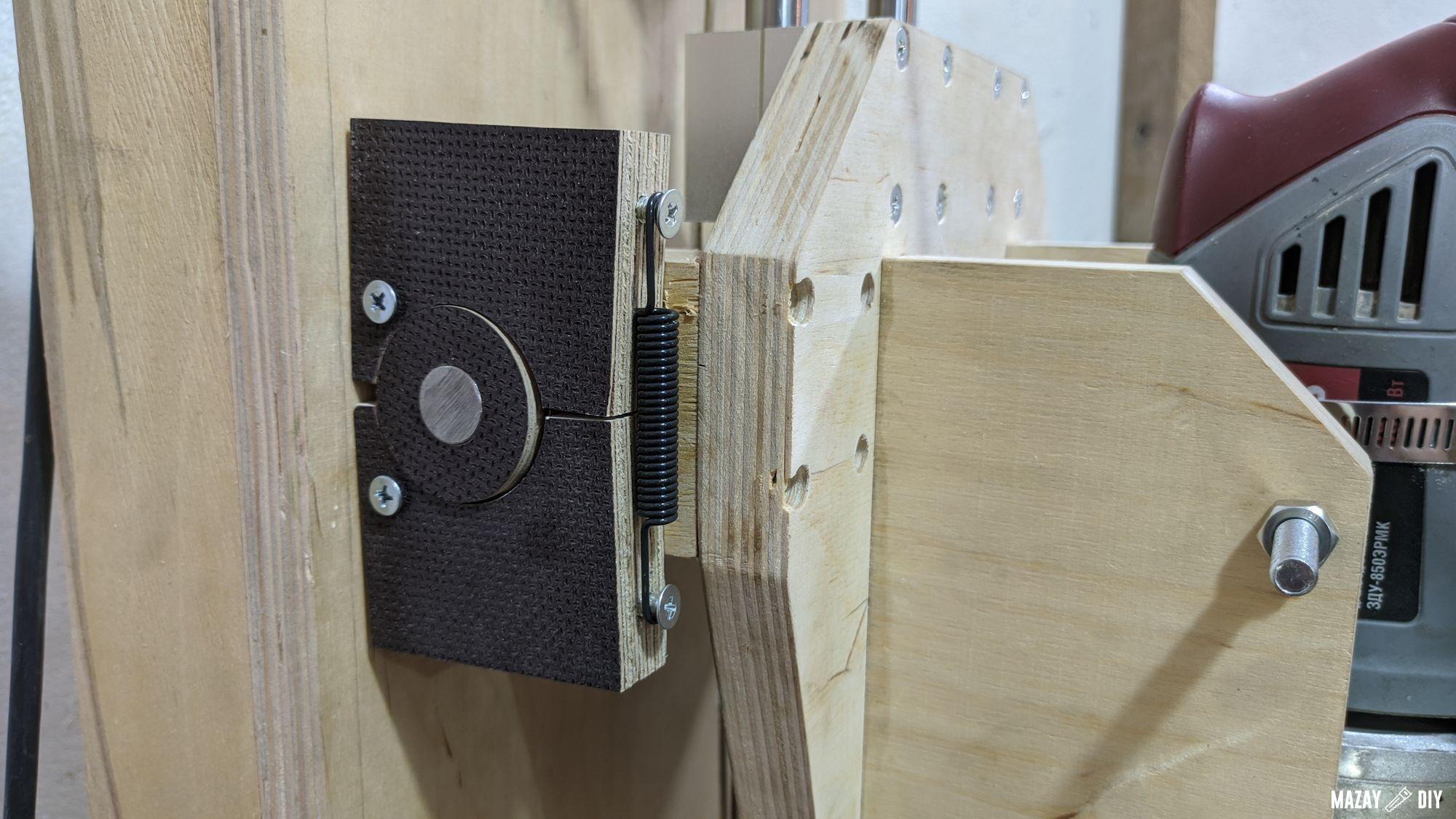

- Spring x 1

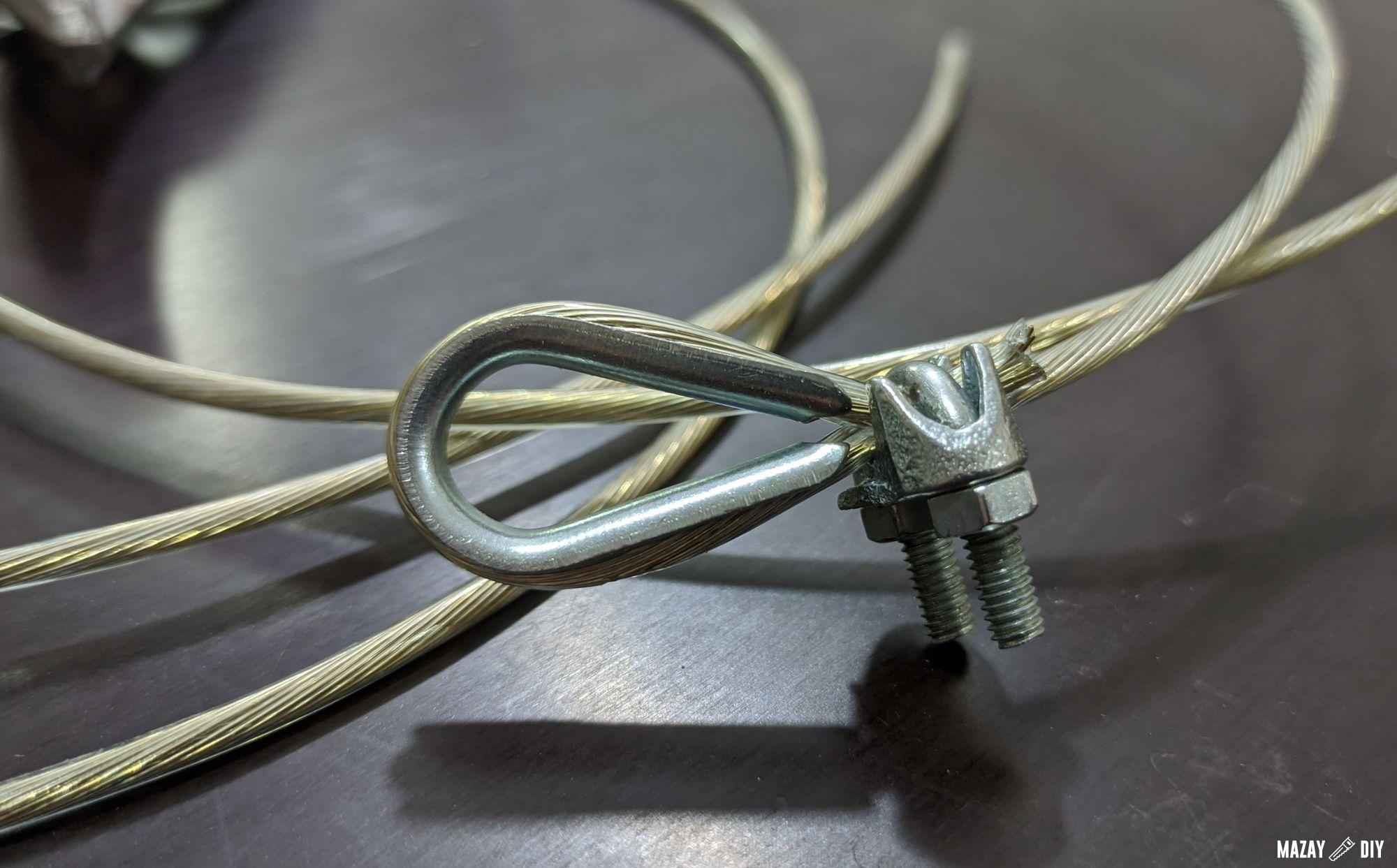

- Stainless Steel Aircraft Wire Rope Cable, 3mm (1/8″) x 1
- T-nut M8 x 3

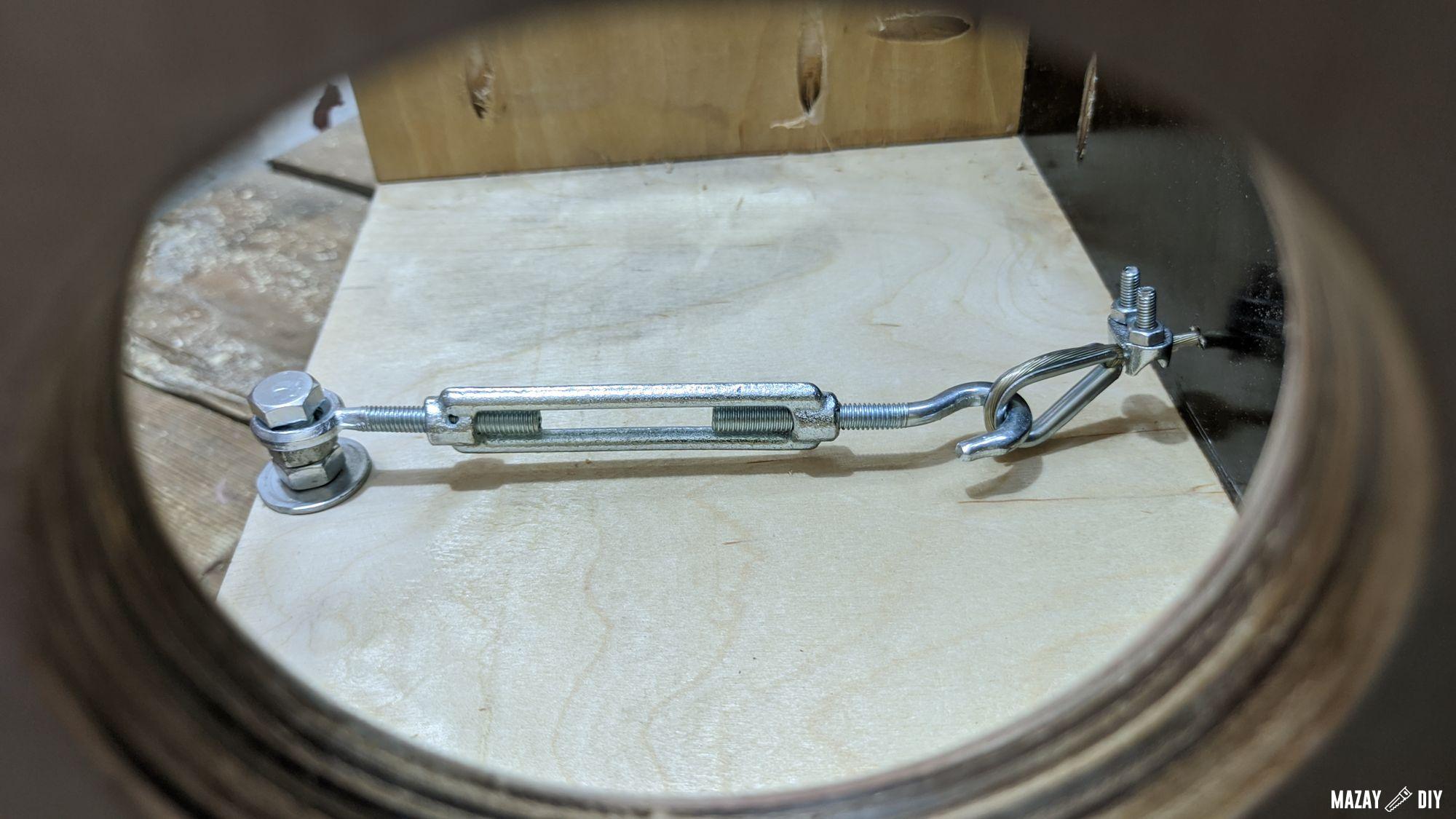

- Turnbuckle М6 x 1
- Wire Rope Clip for 3mm (1/8″) Wire Rope x 3
- Worm Gear Clamp x 1
- Plywood 10 mm OR Plywood 12 mm
- Plywood 20 mm OR Plywood 18 mm

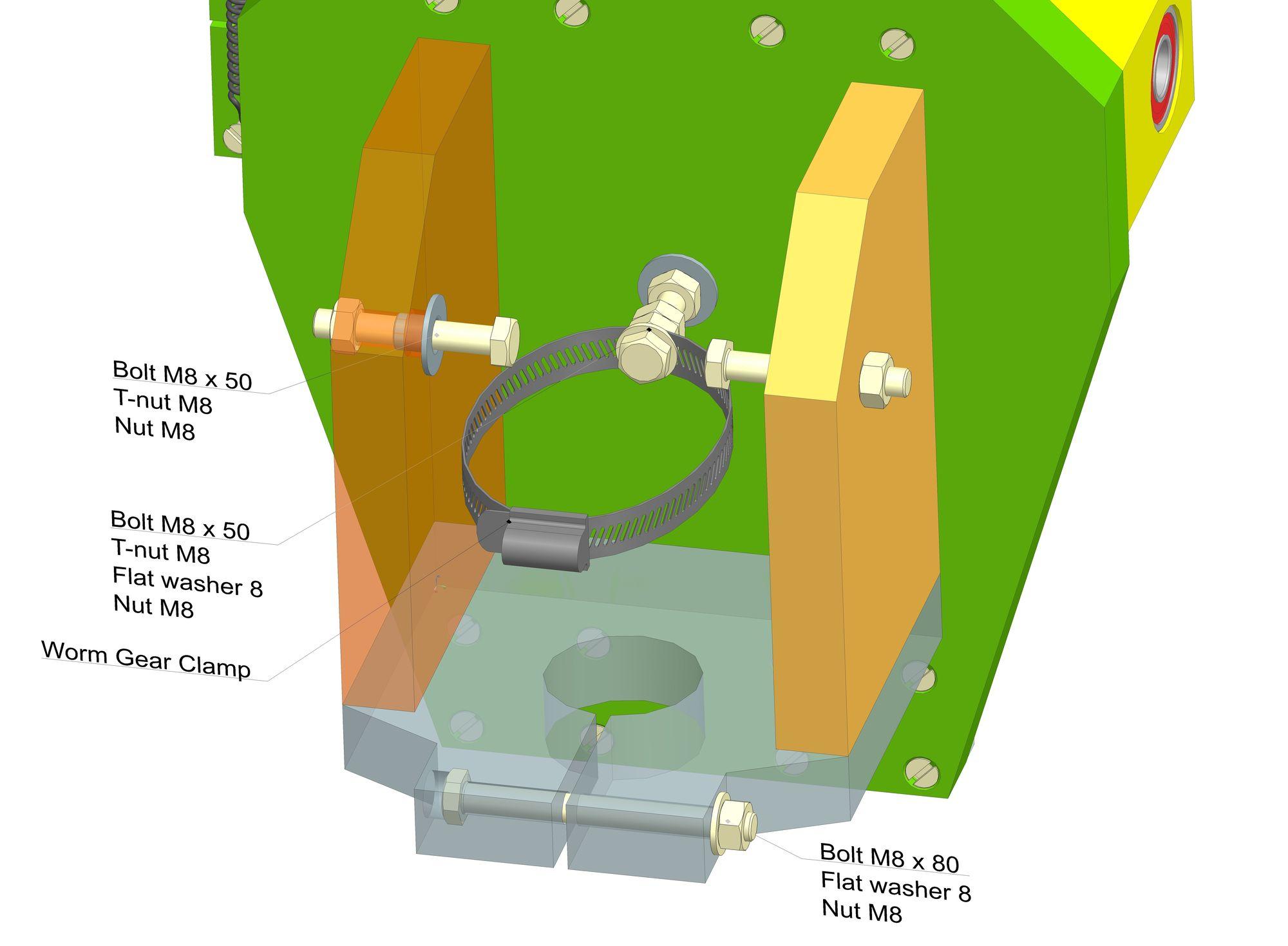

Drill Press Stand Plans
This content is locked
Share This Page To Unlock and DOWNLOAD PDF!

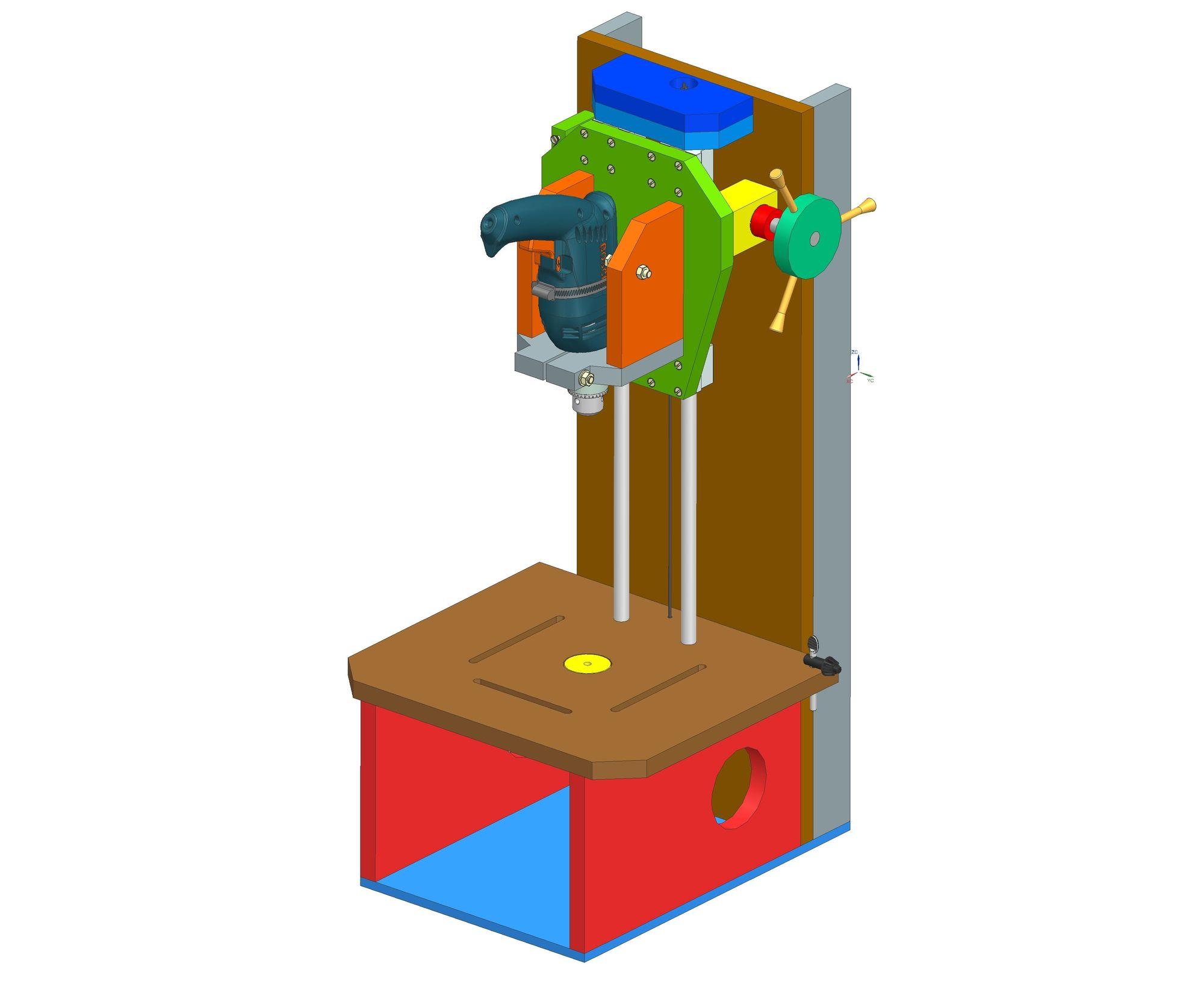

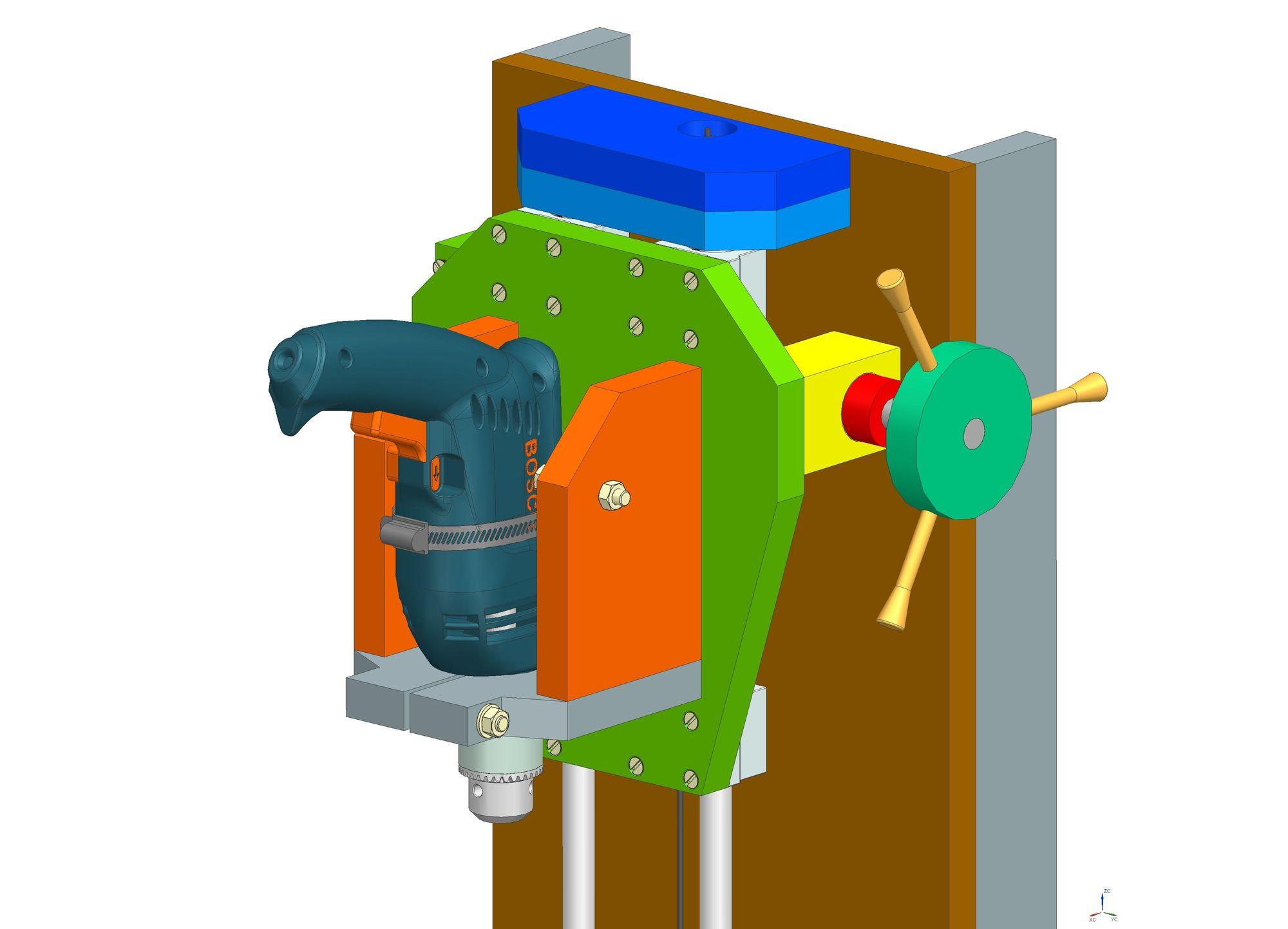

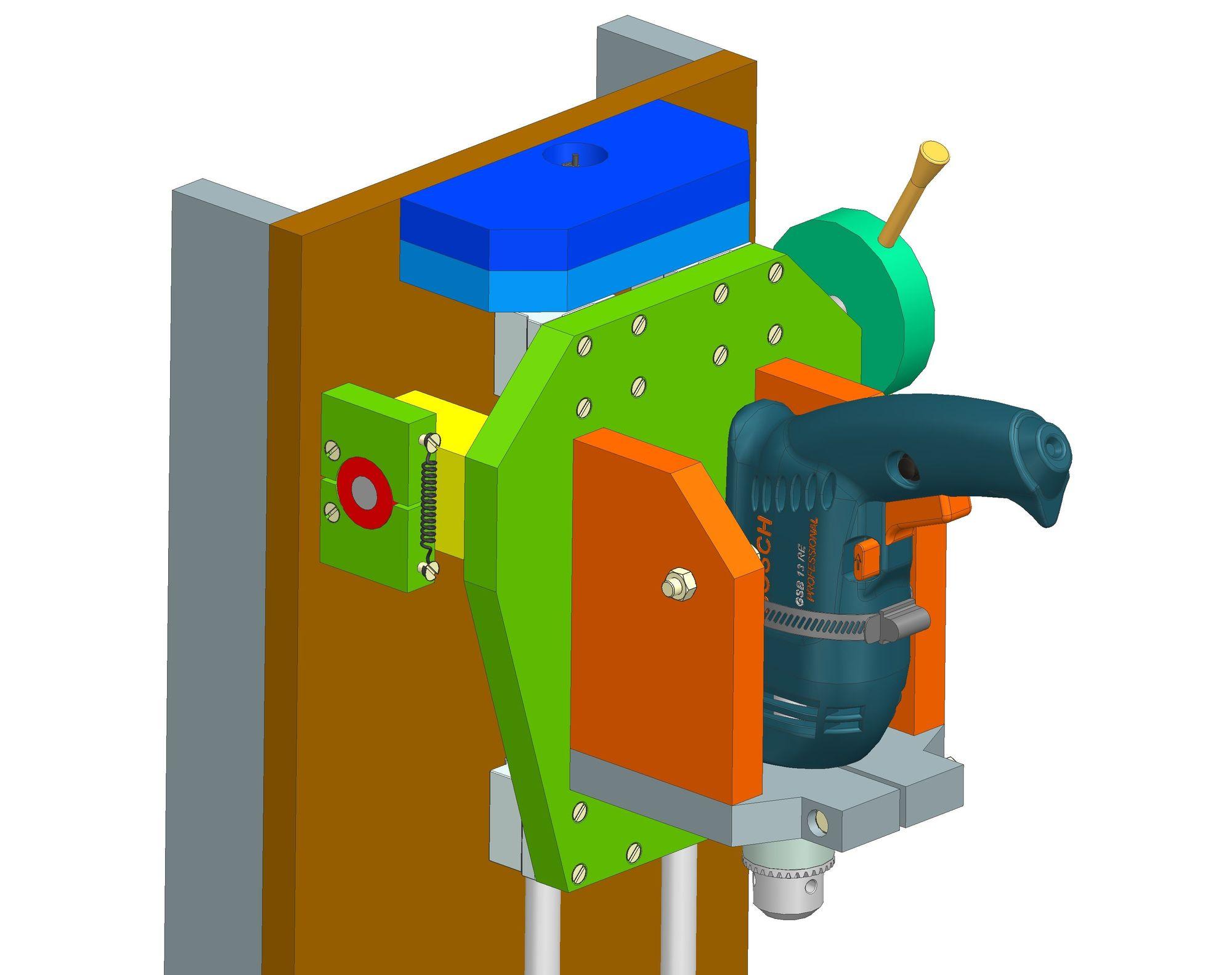

3D model
To make it I used:
- DIY Table saw
- Table saw fence
- Table saw crosscut sled
- Ruler Marking Gauge
- Drill press vise
- F Type Woodworking Clamp
- Woodworking Vise
- Portable Drill Guide Jig
- Pocket Hole Jig
- Angle Grinder Stand
- Jigsaw Table
- Digital Caliper 200 mm

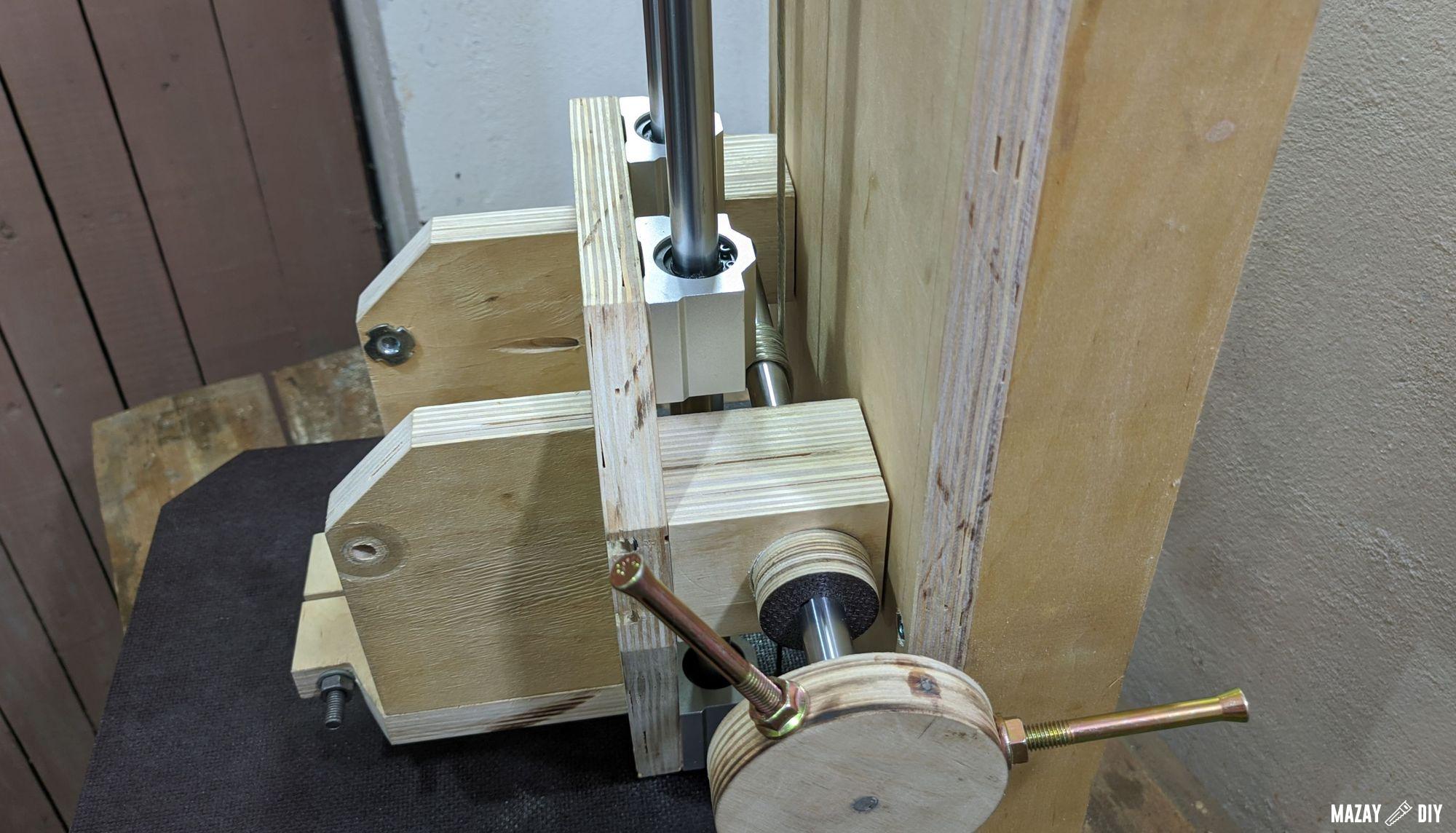

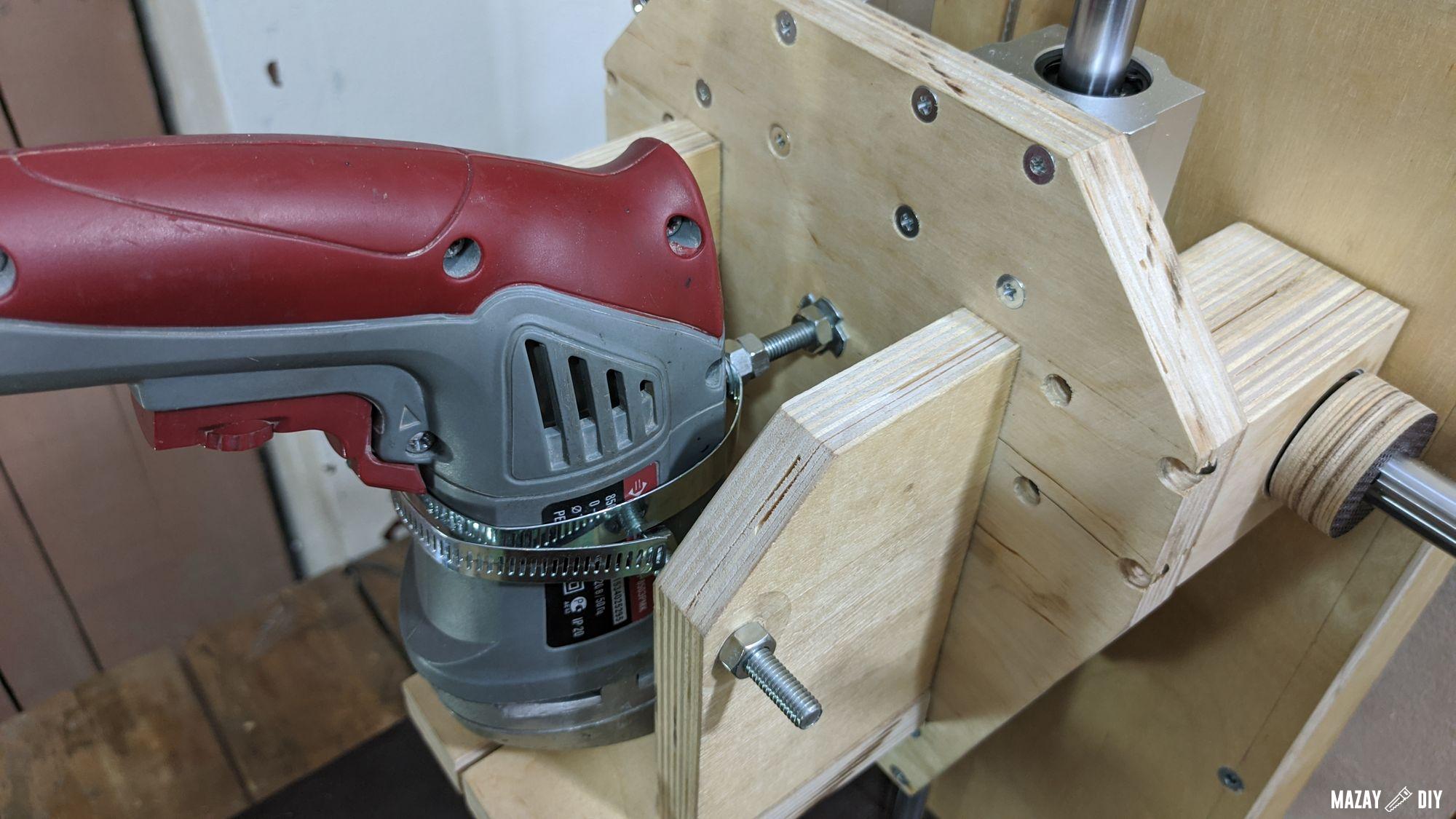

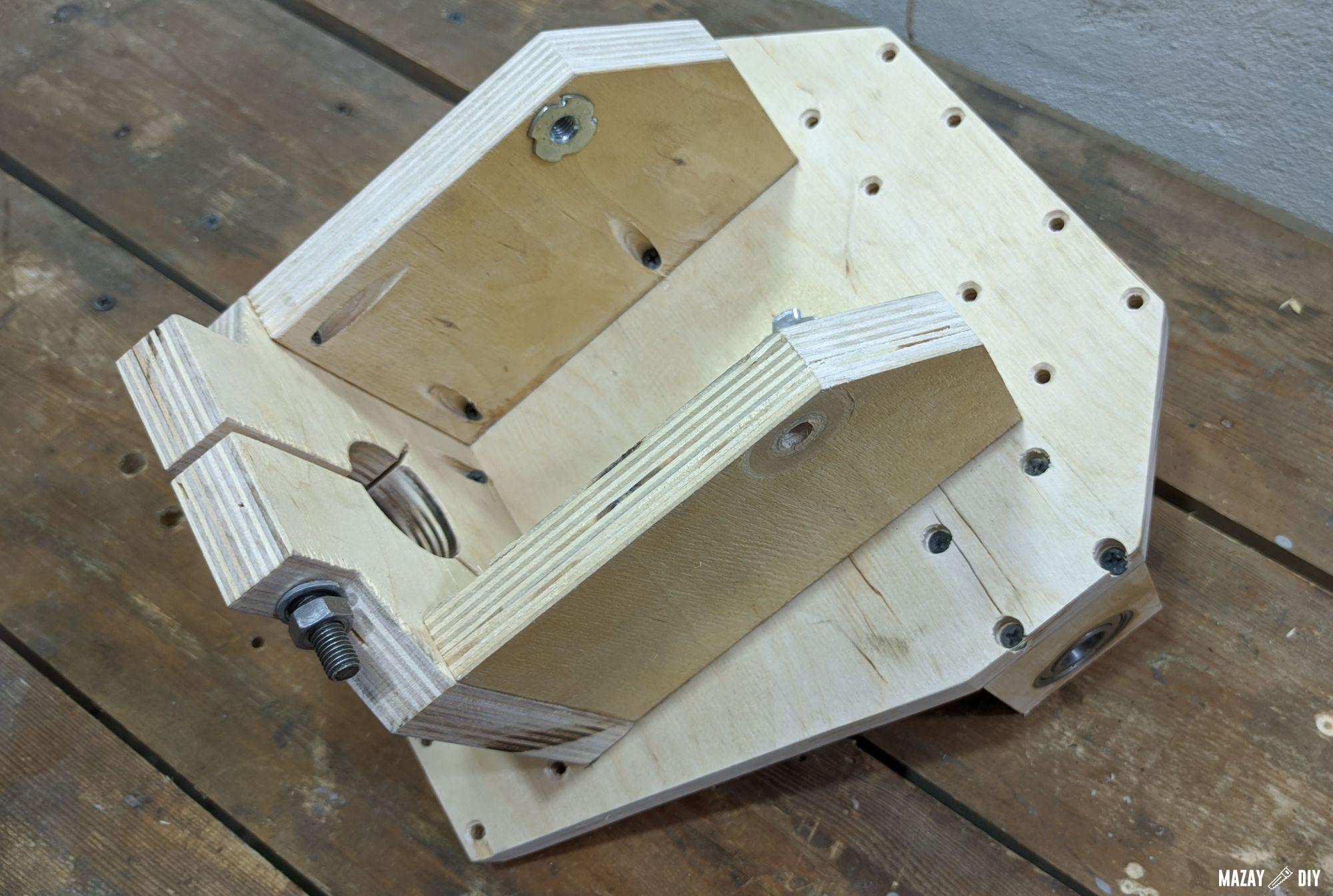

Making Drill press machine step by step
