Today I will show you how to make a drill guide for Drilling Straight Holes
- Linear Motion Rods 10 mm, L=300 mm x 2
- Linear Ball Bearing 10mm x 4
- Bearing 6000 ZZ x 2
- 1/2-20UNF Drill chuck
- Core Drill Bit Adapter with SDS Plus Shank
- Plywood 10 mm
- Plywood 20 mm OR Plywood 18 mm
- Wood

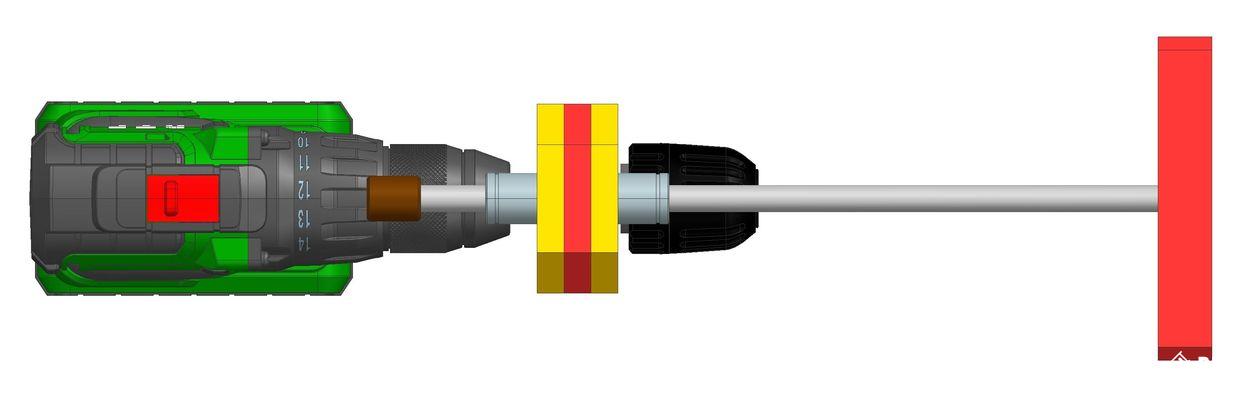

Drill Guide Plans
[indeed-social-locker sm_list=’fb,tw,pt,vk,ok’ sm_template=’ism_template_1′ sm_list_align=’horizontal’ sm_display_counts=’false’ sm_display_full_name=’true’ unlock_type=1 locker_template=2 sm_d_text=’
This content is locked
Share This Page To Unlock and DOWNLOAD PDF!’ ism_overlock=’default’ ]
Download free plans with dimensions (PDF)
[/indeed-social-locker]
3D model
To make it I used:
- DIY Table saw
- Table saw fence
- Table saw crosscut sled
- Ruler Marking Gauge
- Drill press vise
- F Type Woodworking Clamp
