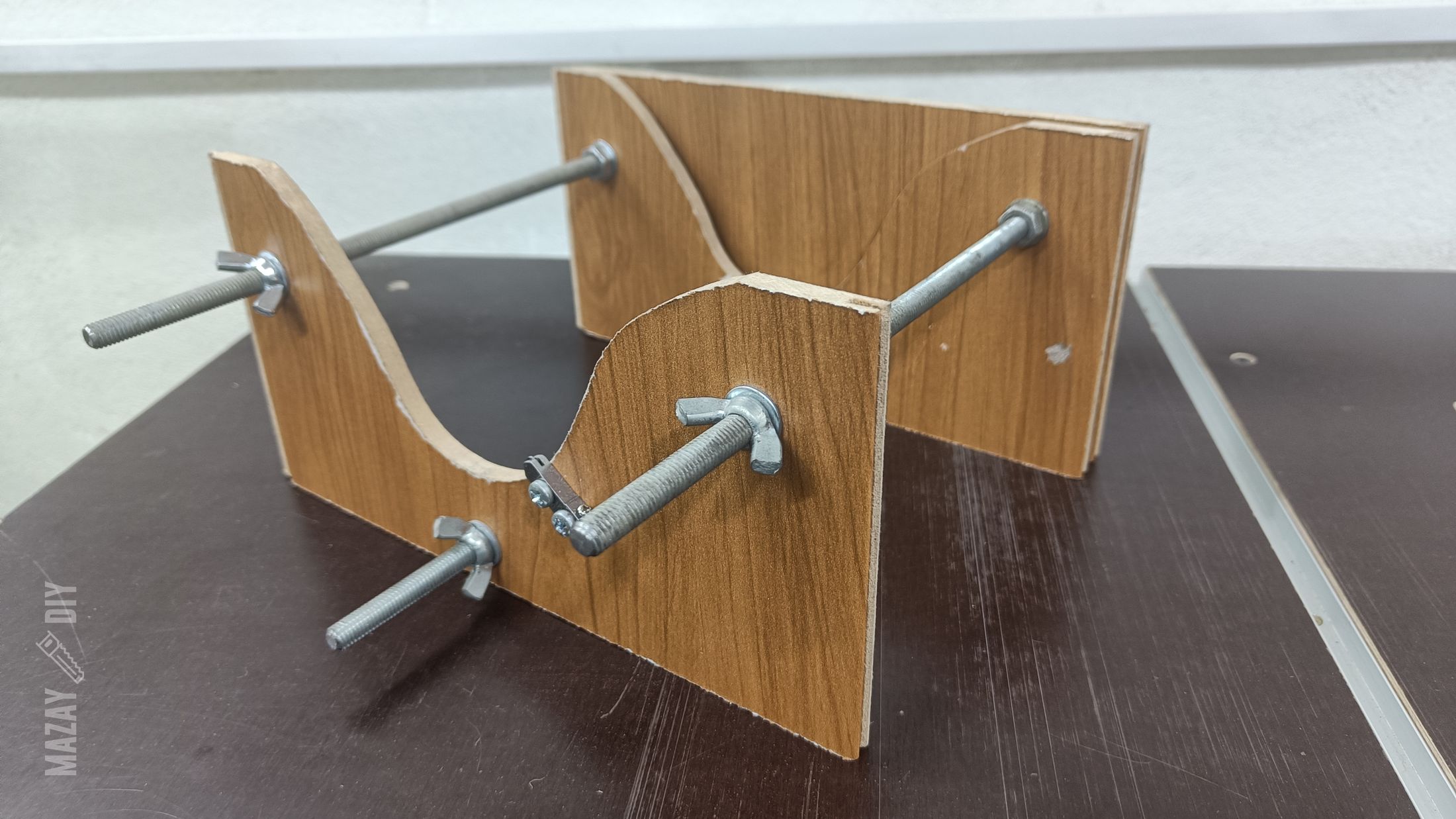

In this video, we’ll show you how to cut a glass bottle at home using a DIY cutting jig. This jig makes the job of cutting a glass bottle much easier and faster, allowing you to make your own drinking glass in no time!
If you’re interested in cutting your own glass bottles at home, then this video is for you! By following the instructions in this video, you’ll be able to cut a glass bottle with ease. Not only that, but you’ll also be able to make your own drinking glass in no time!

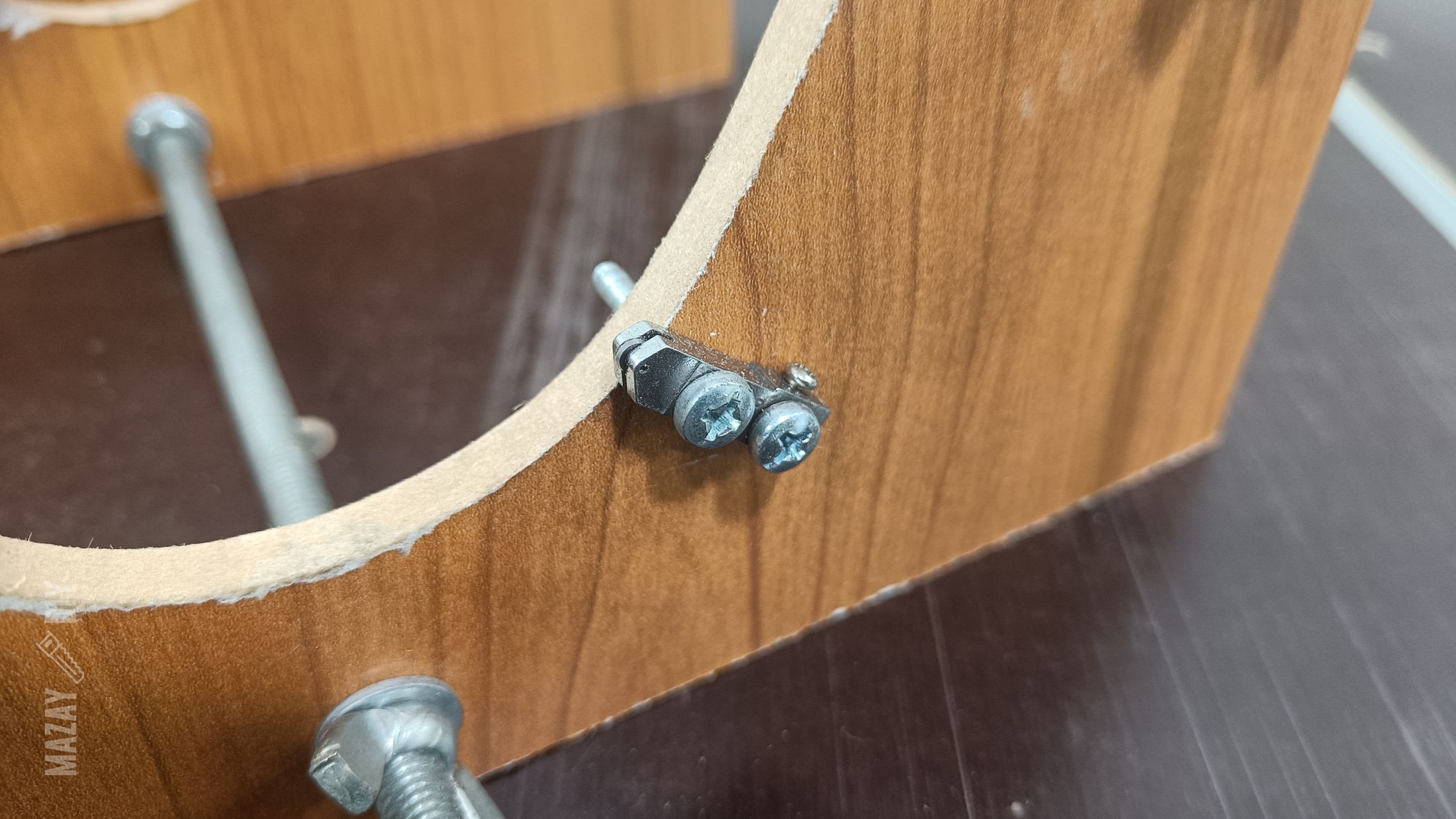

- Glass cutter replacement head
- Threaded rod M8, length=240 x 3
- Wing nut M8x 3
- Nut M8 x 12
- Flat washer 8x 9
- Nut M4 x 2
- Screw M4x20 x 2
- Plywood 8 mm or MDF 8 mm

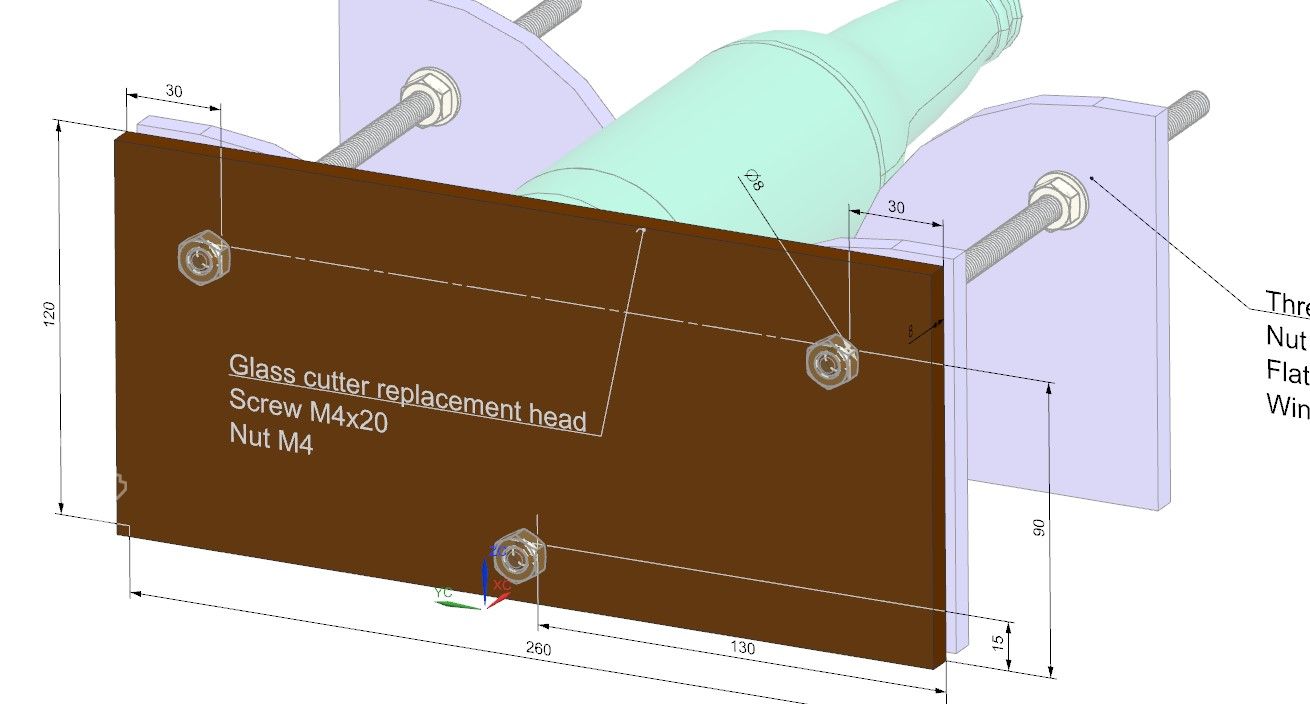

DIY Bottle cutting jig Plans
Download free plans with dimensions (PDF)

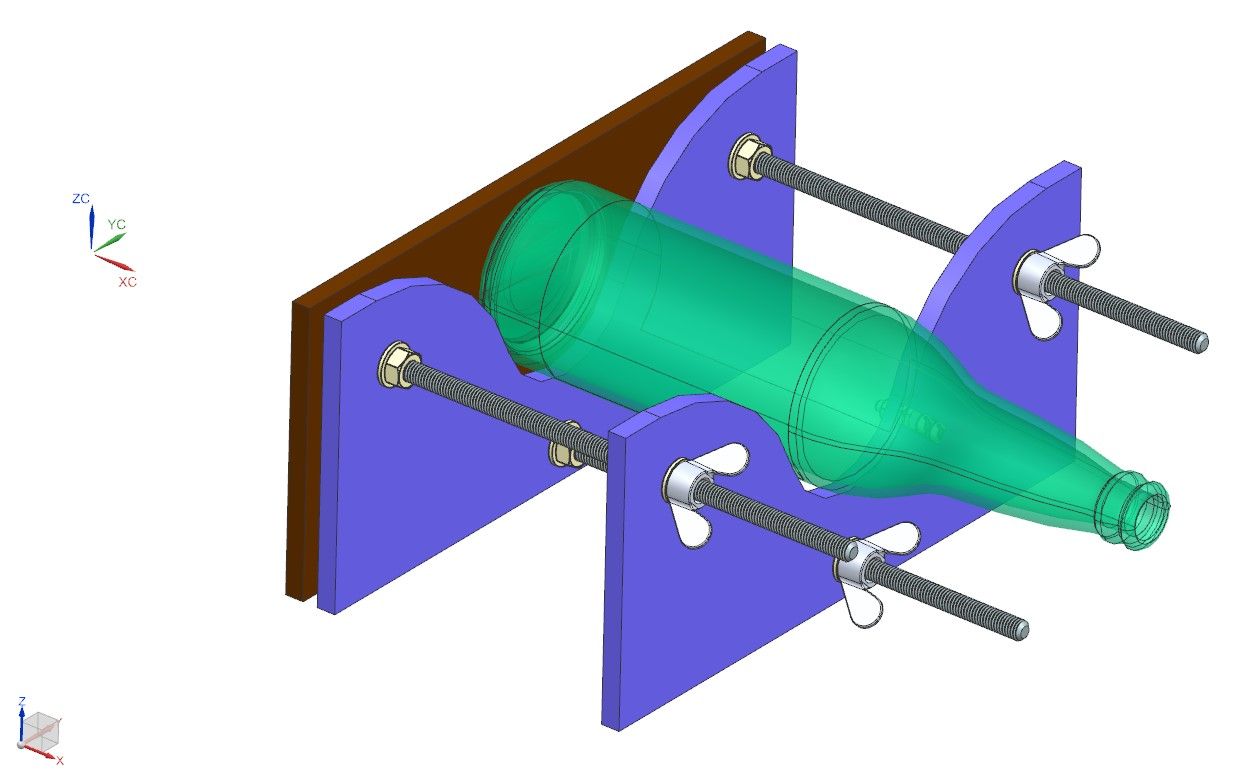

Bottle cutting jig 3D model
To make it I used my homemade tools:
- Drill Press Machine
- Drill Press Table
- Table saw
- Table saw crosscut sled
- Angle Grinder Stand
- T-track hold down clamps
- Bench Vise
