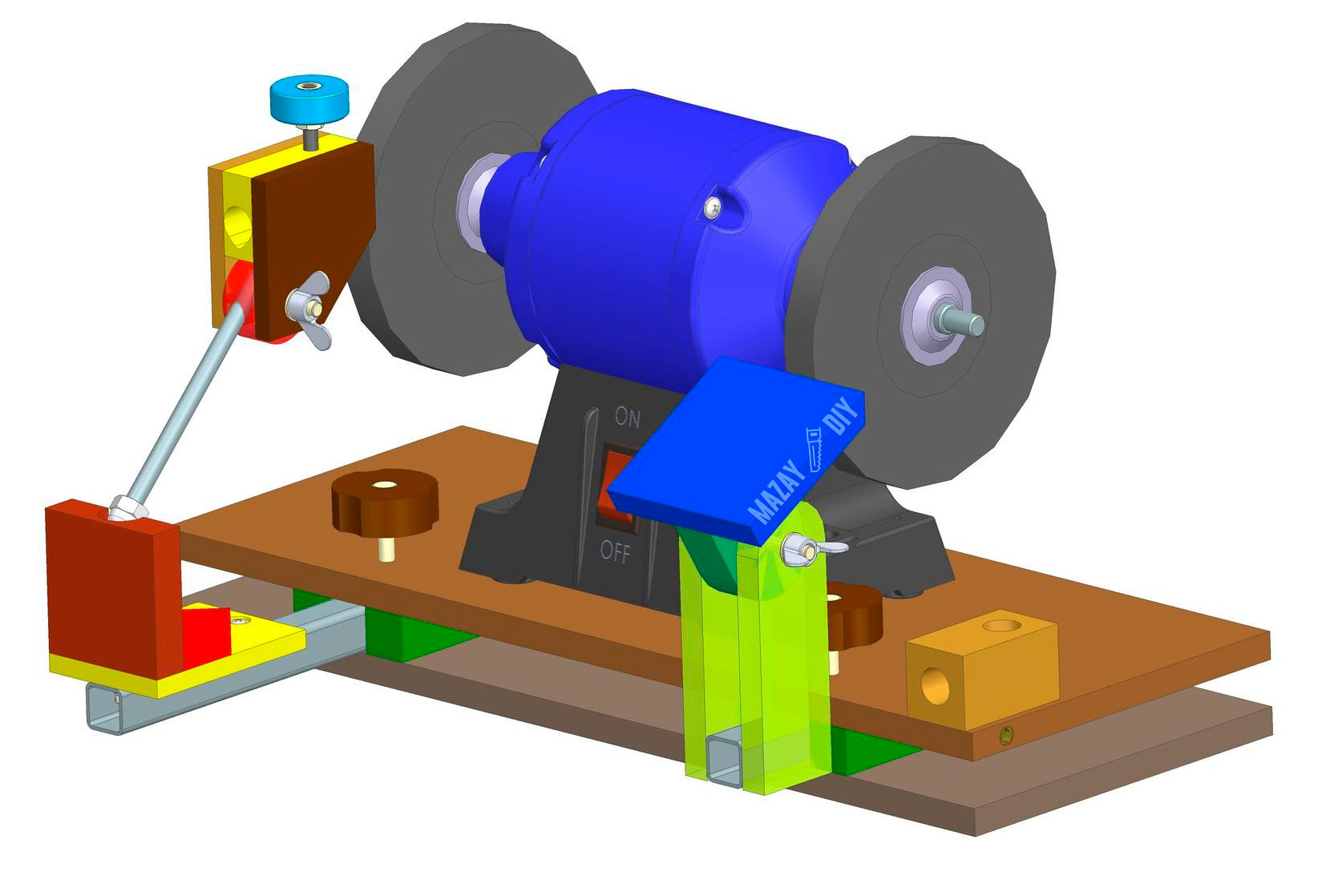

Today I will show you how to make three Sharpening Jigs For Lathe Turning Tools
- Bolt M8 x 50 x 1
- Wing nut M8x 1
- Flat washer 8x 1
- Threaded rod M10, length=150 mm
- Dome nut M10 x 1
- Nut M8x 1
- Bearing 626 ZZ x 1
- Threaded rod M8, length=55 mm
- Bolt M8 x 60x 1
- Wing nut M8x 1
- Flat washer 8x 1
- Truss head Wood Screw, L=32mm x 2
- Bolt M8 x 40x 1
- Plywood 10 mm
- Plywood 15 mm
- Plywood 20 mm
- Lumber 50×50 mm
- Lumber 25×25 mm
- Square Steel Tube 25×25×2 mm
Sharpening Jigs Plans
