Homemade belt grinder

Don’t throw away old juicer machine!
I will show you how to make a belt grinder from old Soviet juicer.
belt grinder

belt sander

Materials

  1. Bearing 608 ZZ x 2
  2. Galvanized Steel Sheet
  3. Plywood 6 mm
  4. Plywood 10 mm
  5. Plywood 20 mm
  6. Sander belt 50×686
  7. Steel angle

Belt Sander Plans

belt grinder plans

Download free plans with dimensions (PDF)

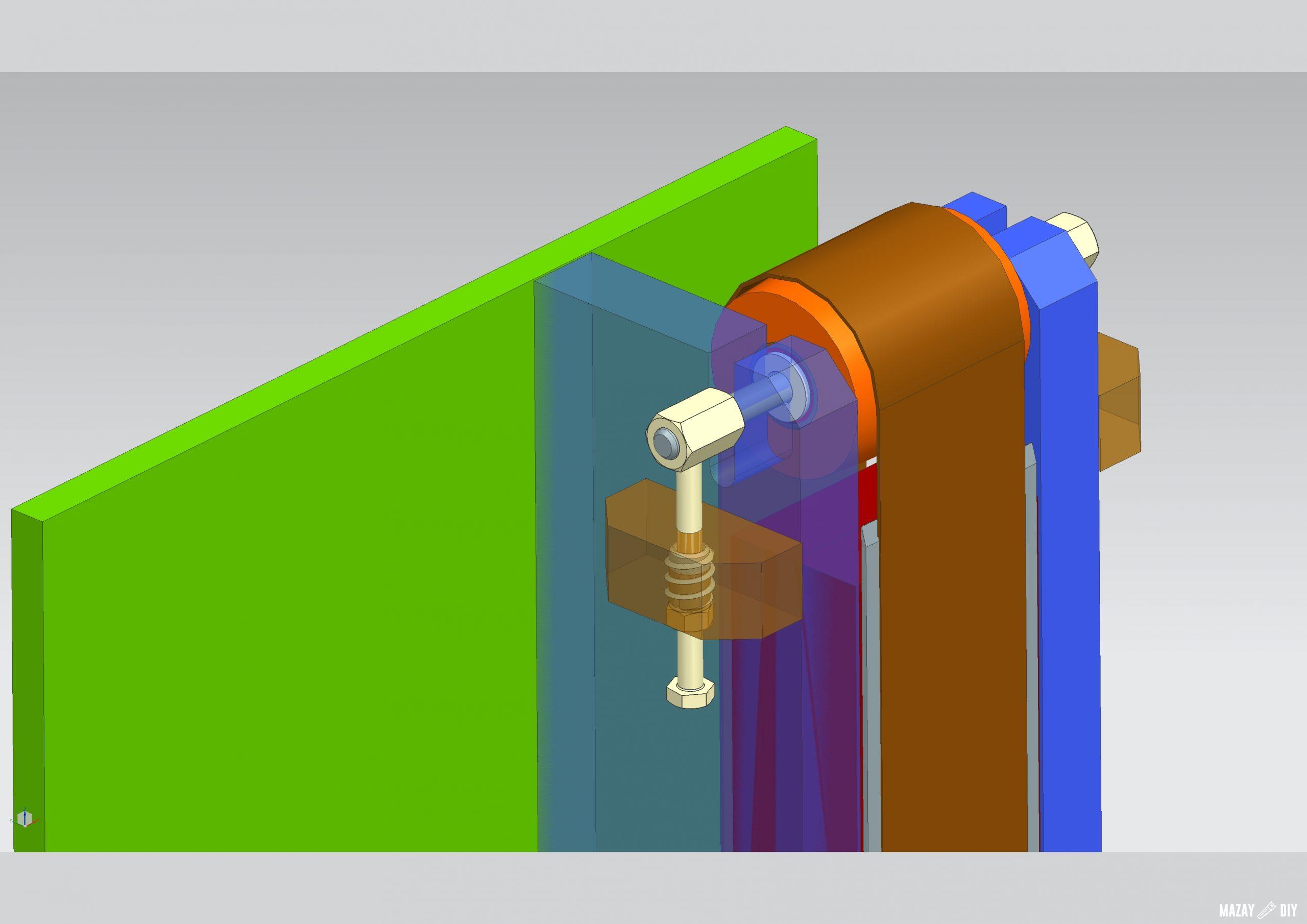

3D model

belt sander 3d model

Download 3D model

To make it I used:
