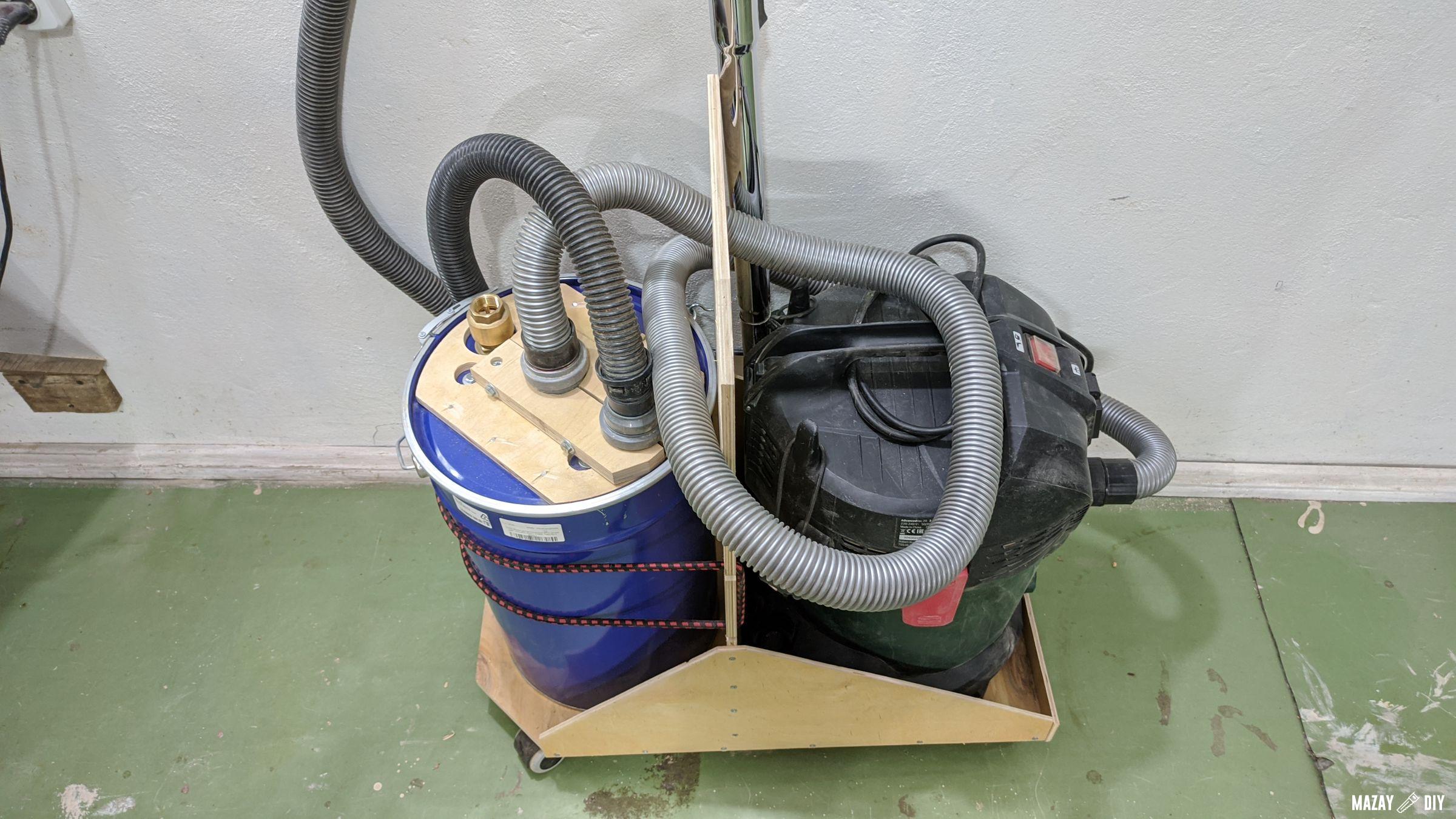

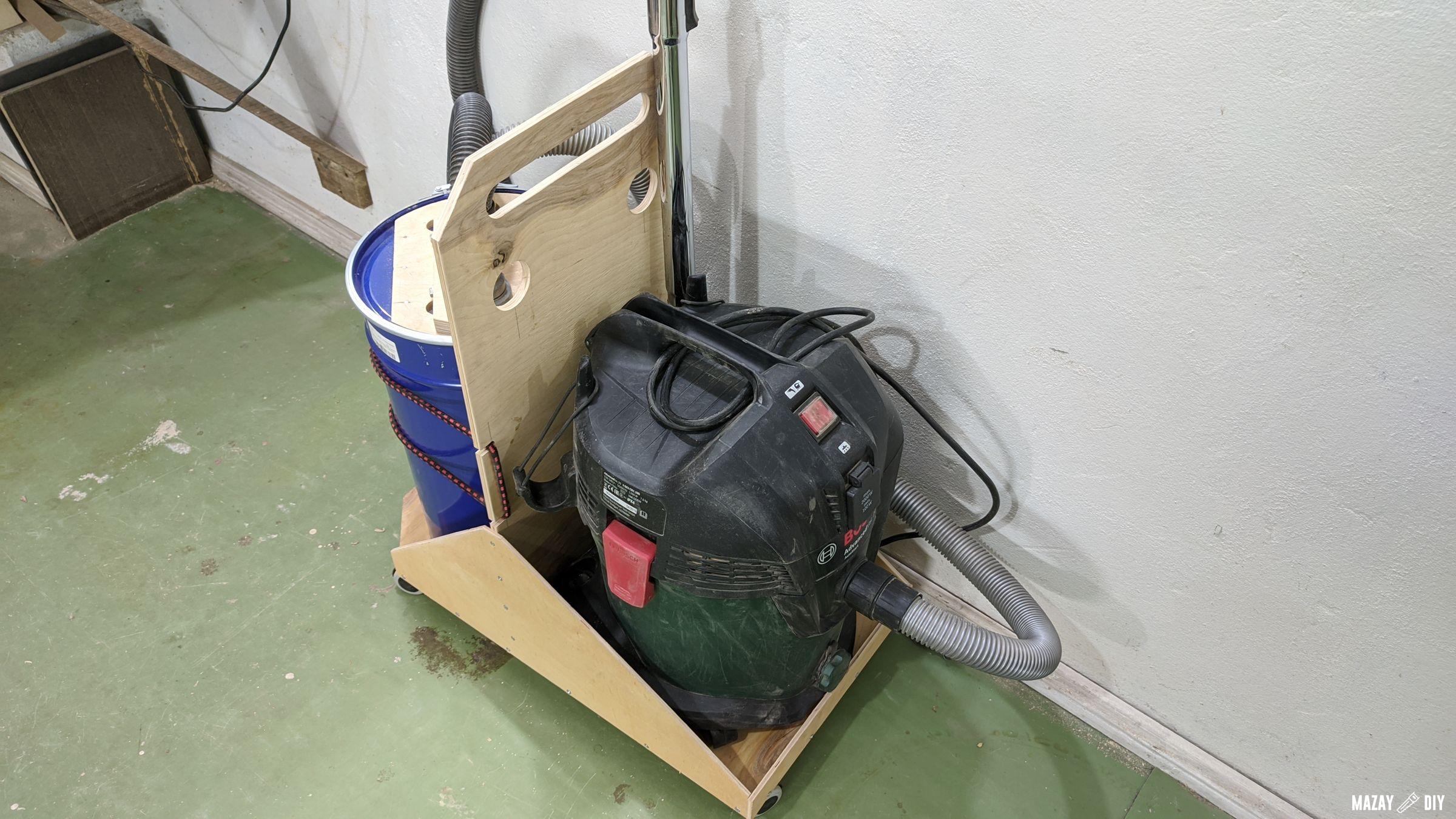

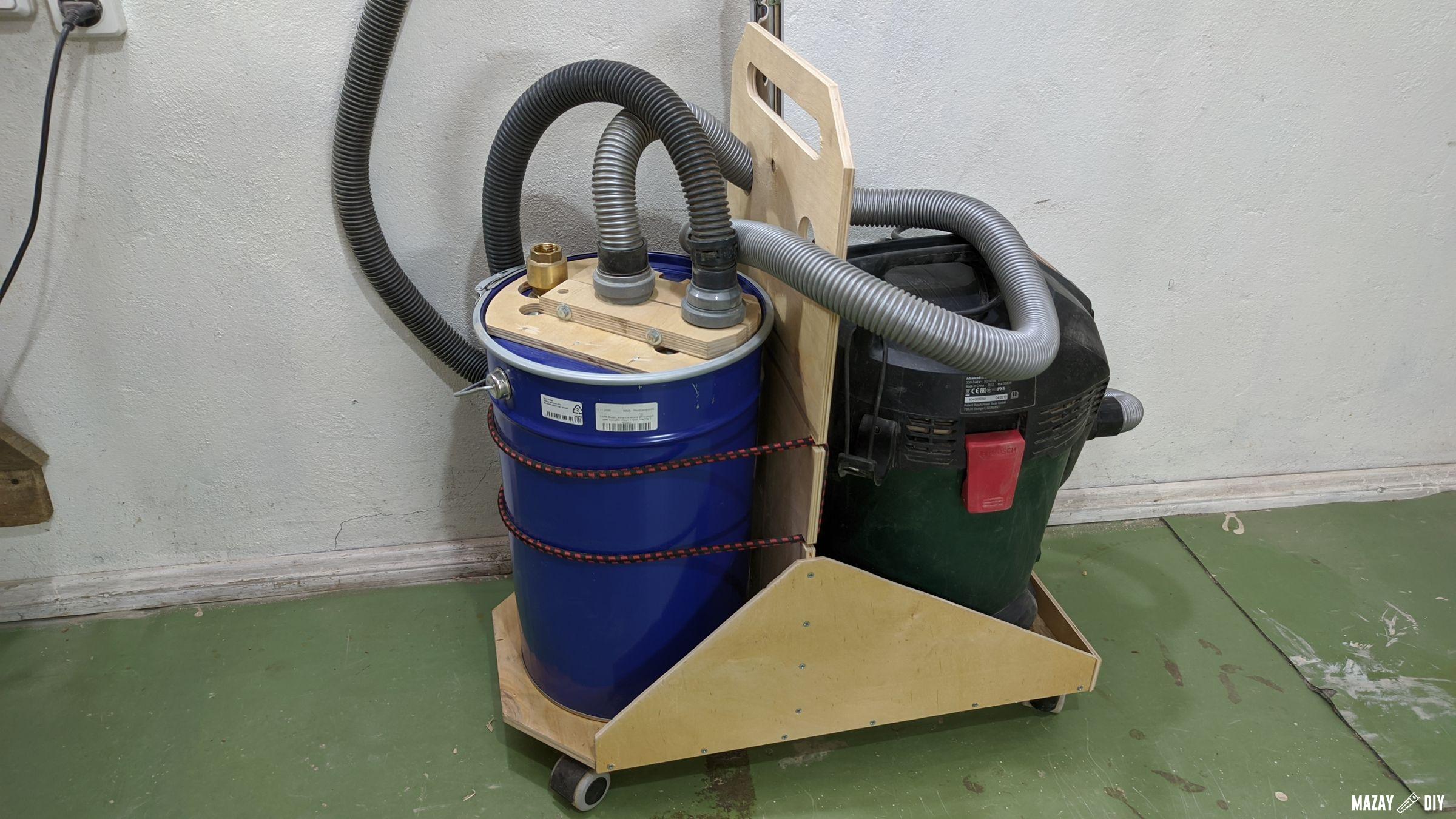

Today I will show you how to make a cyclone dust separator with free plans
- Threaded Insert M6 x 4
- Bolt M6 x 80 x 3
- Bolt M6 x 100 x 2
- Flat Fender washer M6 x 8
- Nut M6 x 6
- Locknut M6 x 3
- Threaded Insert M6 x 2
- Check valve 3/4
- Flange locknut ¾ x 2
- Male Threaded Pipe Fitting ¾
- Rubber castor wheels 2’ x 4
- Paint bucket with lid
- PVC Sewer Knee fi 50 angle 90 degrees
- PVC Sewer pipe fi 50
- Plywood 6 mm
- Plywood 10 mm OR 12 mm
- Plywood 18 mm or 20 mm
Cyclone Plans
[indeed-social-locker sm_list=’fb,tw,pt,vk,ok’ sm_template=’ism_template_1′ sm_list_align=’horizontal’ sm_display_counts=’false’ sm_display_full_name=’true’ unlock_type=1 locker_template=2 sm_d_text=’
This content is locked
Share This Page To Unlock and DOWNLOAD PDF!’ ism_overlock=’default’ ]
Download free plans with dimensions (PDF)
[/indeed-social-locker]

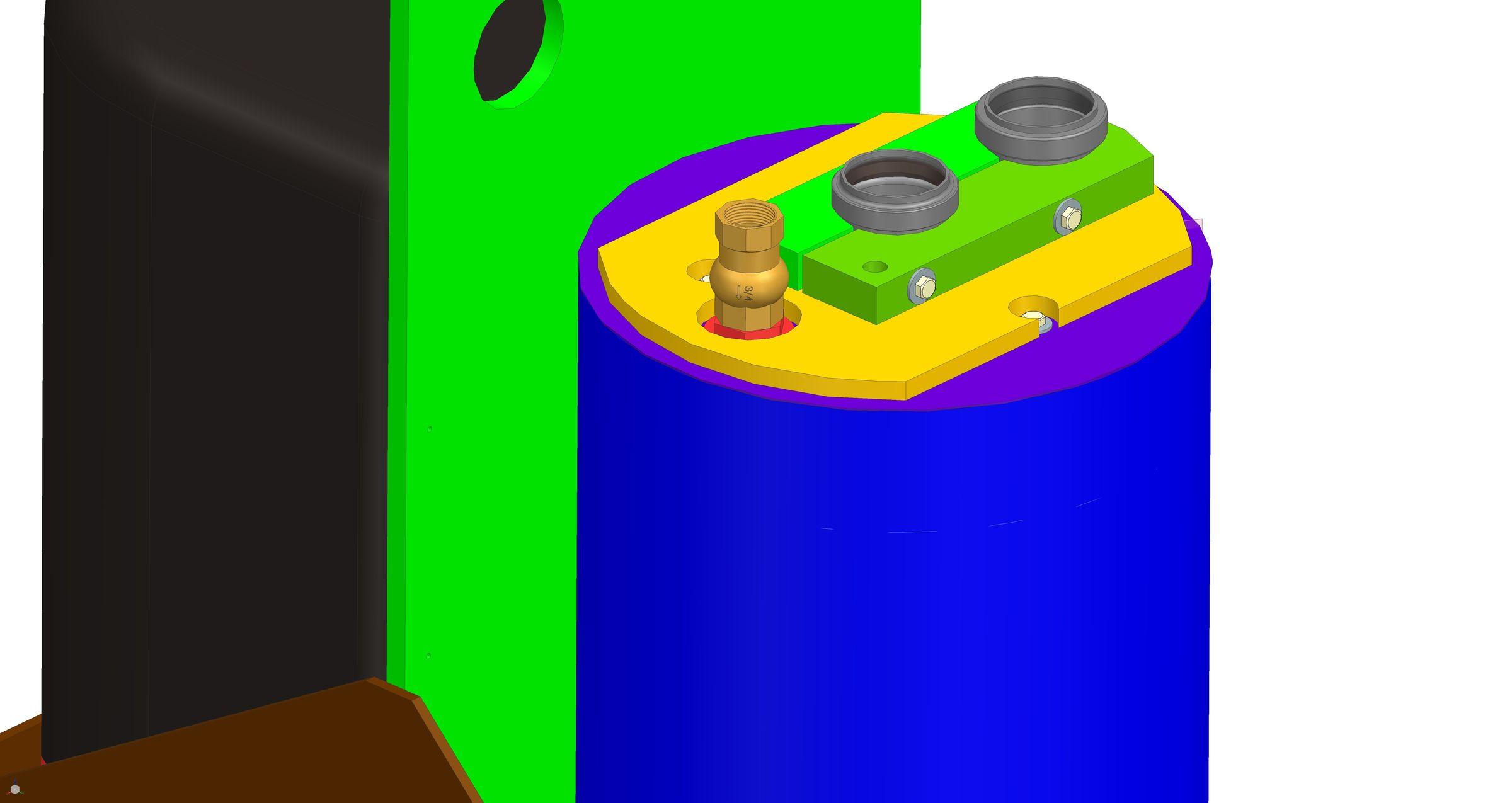

3D model
To make it I used:
- Drill Press Machine
- Drill Press Table
- Jigsaw table
- DIY Table saw
- Ruler Marking Gauge
- Table saw fence
- Angle Grinder Stand
- T-track hold down clamps
- Bench Vise
