Homemade Woodworking Lathe Machine Using Washing Machine Motor

Today I will show you how to make a wood lathe machine with free plans

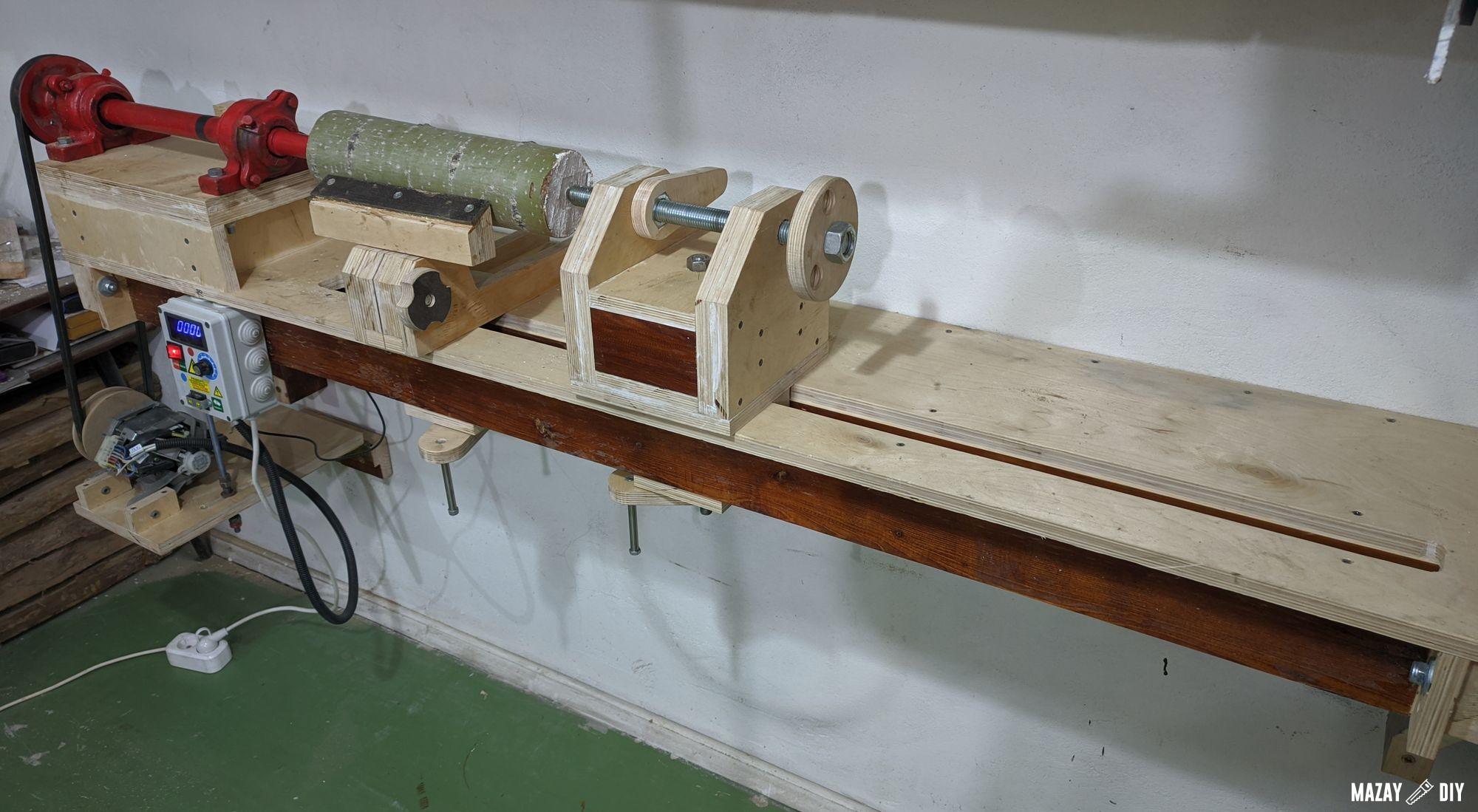

DIY woodworking lathe machine DIY woodworking lathe machine

  1. Bolt M8 x 100 x 2
  2. Bolt M10 x 100 x 1
  3. Flat Fender washer M10 х 13
  4. Flat Fender washer M16 х 1
  5. Frame anchor bolt M10x130 х 6
  6. Locknut M10 x 12
  7. Nail
  8. Nut M8x 4
  9. Nut M16х 5
  10. Nut M24 х 3
  11. Stainless steel tube 10×1, L=70 мм x 2
  12. Steel strip 3 х 25 х250
  13. T-nut M10 OR Coupling nut M10 x 1
  14. Threaded rod M10, length=(90 x 6)=540mm
  15. Threaded rod M16, length= (325+215)=540mm
  16. Threaded rod M24, length= 350mm

  • Shaft Ø35 mm, L=550mm
  • Bearing Pillow Block SKF UCP207 х 2
  • Washing Machine Motor 585 W
  • V-belt Type B, Length=1400mm
    1. Tube 1’’ (Nipple Pipe Fitting), L=150…160 mm
    2. Wood Screws 3.5×19
    3. Plywood 10 mm OR 12 mm
    4. Plywood 18 mm or 20 mm
    5. Lumber 40×100 mm

    Wood Lathe Plans

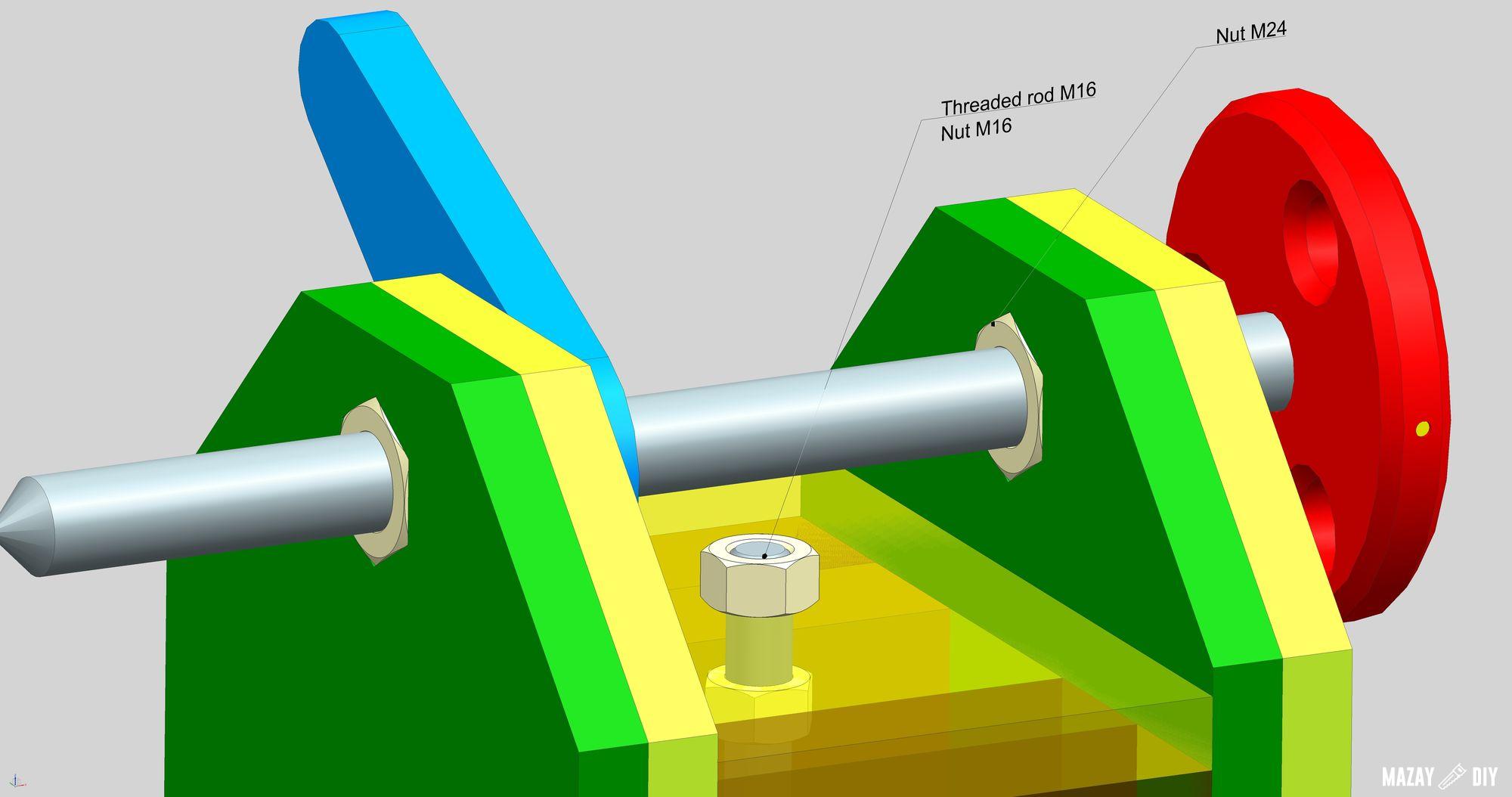

    DIY woodworking lathe machine plans

    This content is locked

    Share This Page To Unlock and DOWNLOAD PDF!

    3D model

    DIY woodworking lathe CAD model

    Download 3D model

    DIY woodworking lathe machine

    To make it I used:

    DIY woodworking lathe machine
