DIY Knife Sharpening Jig

Today I will show you how to make a knife sharpening system. Version 2.0.

Previous version of jig.

Homemade Knife and Scissors Sharpening jig

  1. Rod end bearing TSF 8 (ISB) x 1
  2. Screw M8x25 DIN 912 (or Bolt M8x25 x 1)
  3. Flat washer 8 x 1
  4. Wing nut M8 x 1
  5. Countersunk head screw M6x20 х 5
  6. Flat washer 6 x 3
  7. Steel plate S=2mm
  8. Nut M6 x 3
  9. Neodymium magnet Ø20×3 with hole x 3
  10. Flange hex nut M8 DIN 6923 x 1
  11. Threaded rod M8, L=180 mm
  12. Threaded insert M6 x 2
  13. Nut M8 x 1
  14. Spring

  1. Stainless steel linear motion rod Ø8 x 400mm
  2. Plywood 15 mm
  3. Plywood 18 mm or 20 mm
  4. Wood

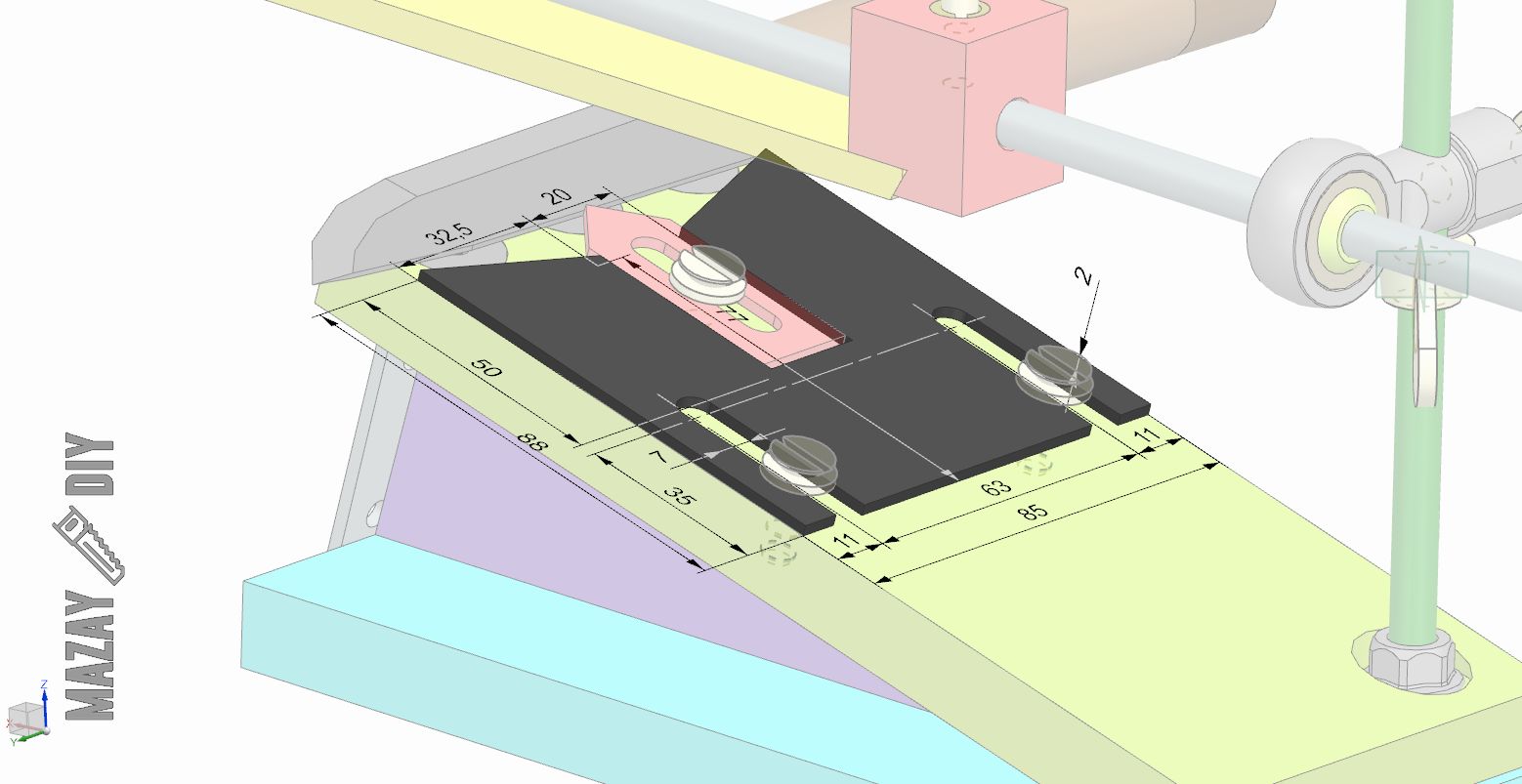

Knife sharpener Plans

Knife and Scissors Sharpening jig plans


This content is locked

Share This Page To Unlock and DOWNLOAD PDF!

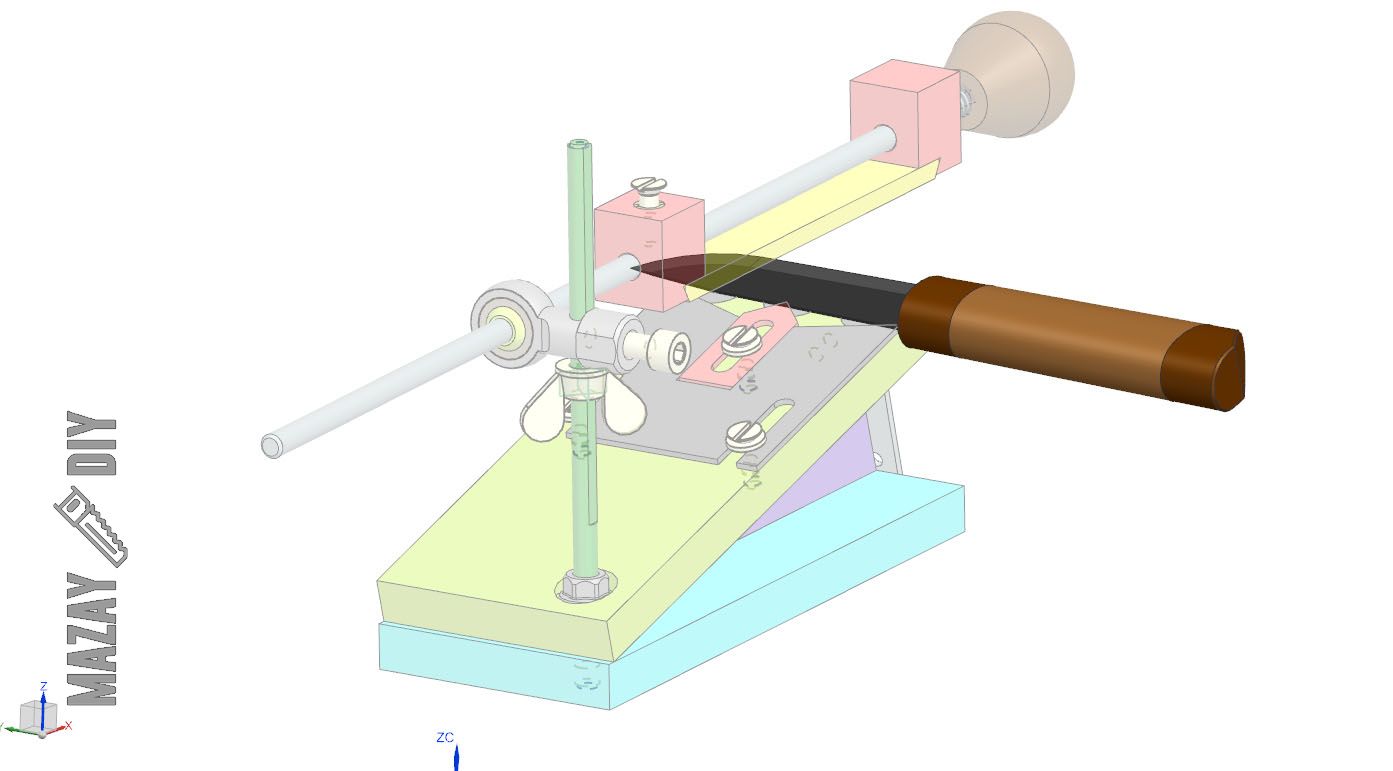

Sharpening jig for knives 3D model

Knife and Scissors Sharpening jig 3D

Download 3D model

To make it I used my homemade tools:

Previous version – 3 in 1 Knife Sharpening System

Homemade Knife and Scissors Sharpening jig

Homemade Knife and Scissors Sharpening jig
